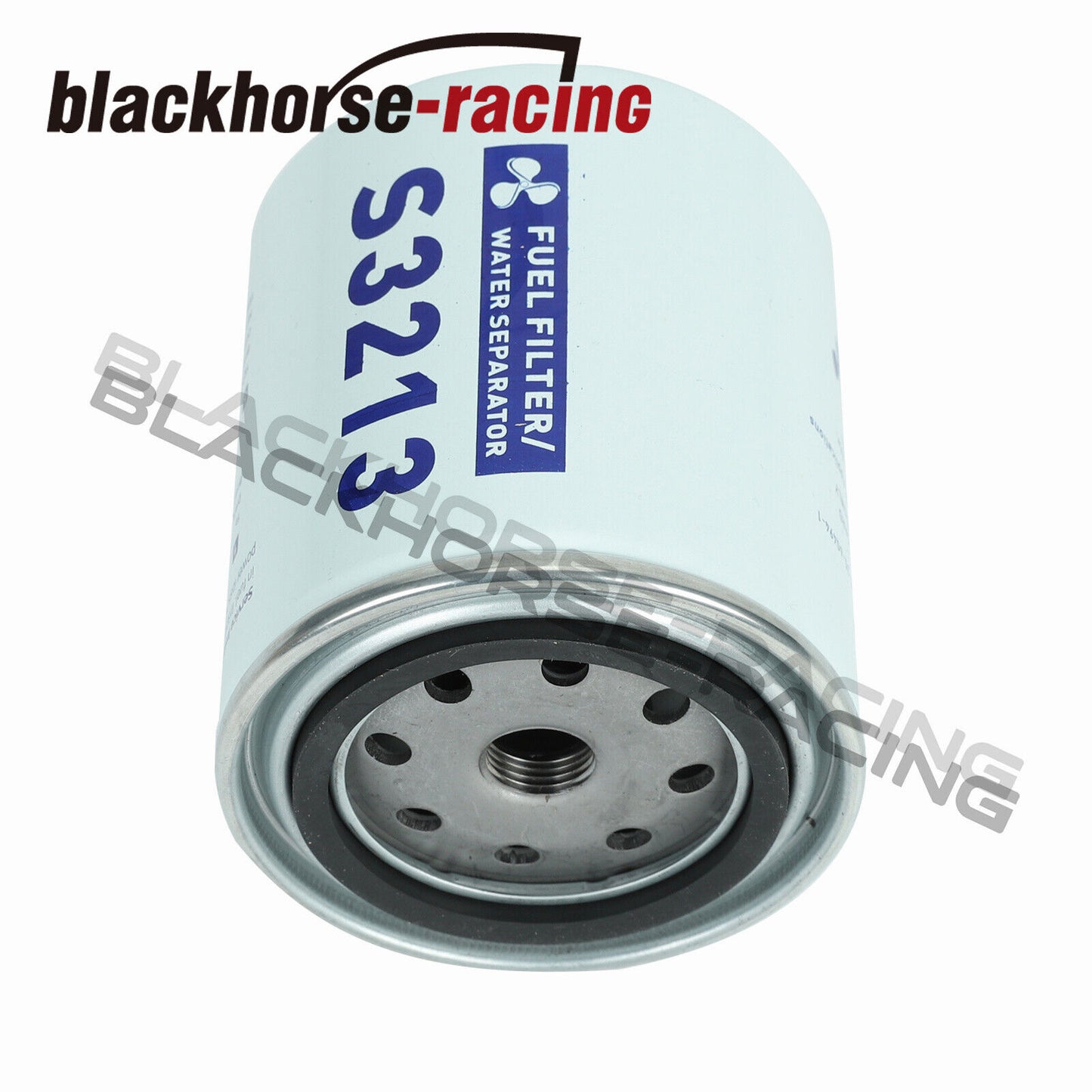

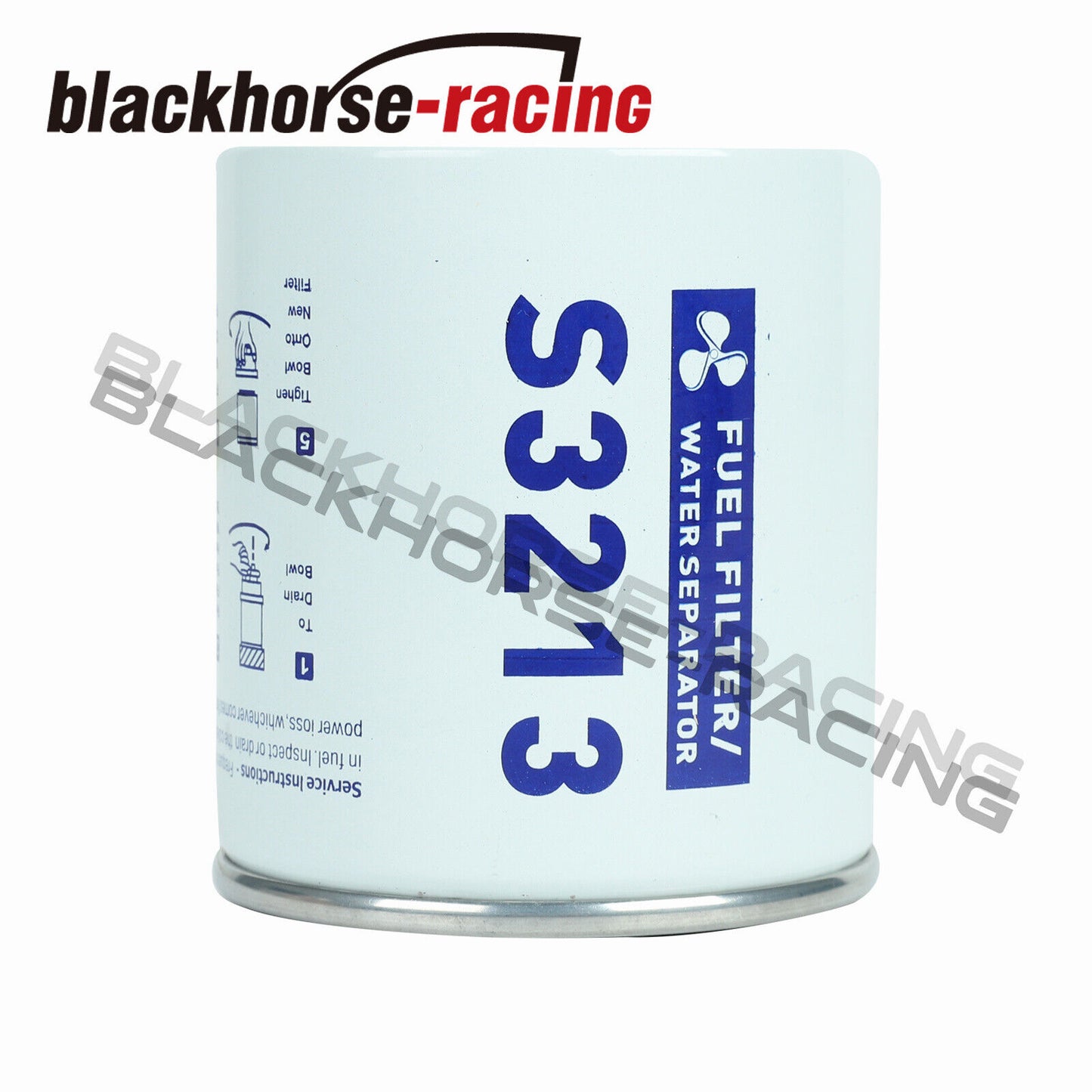

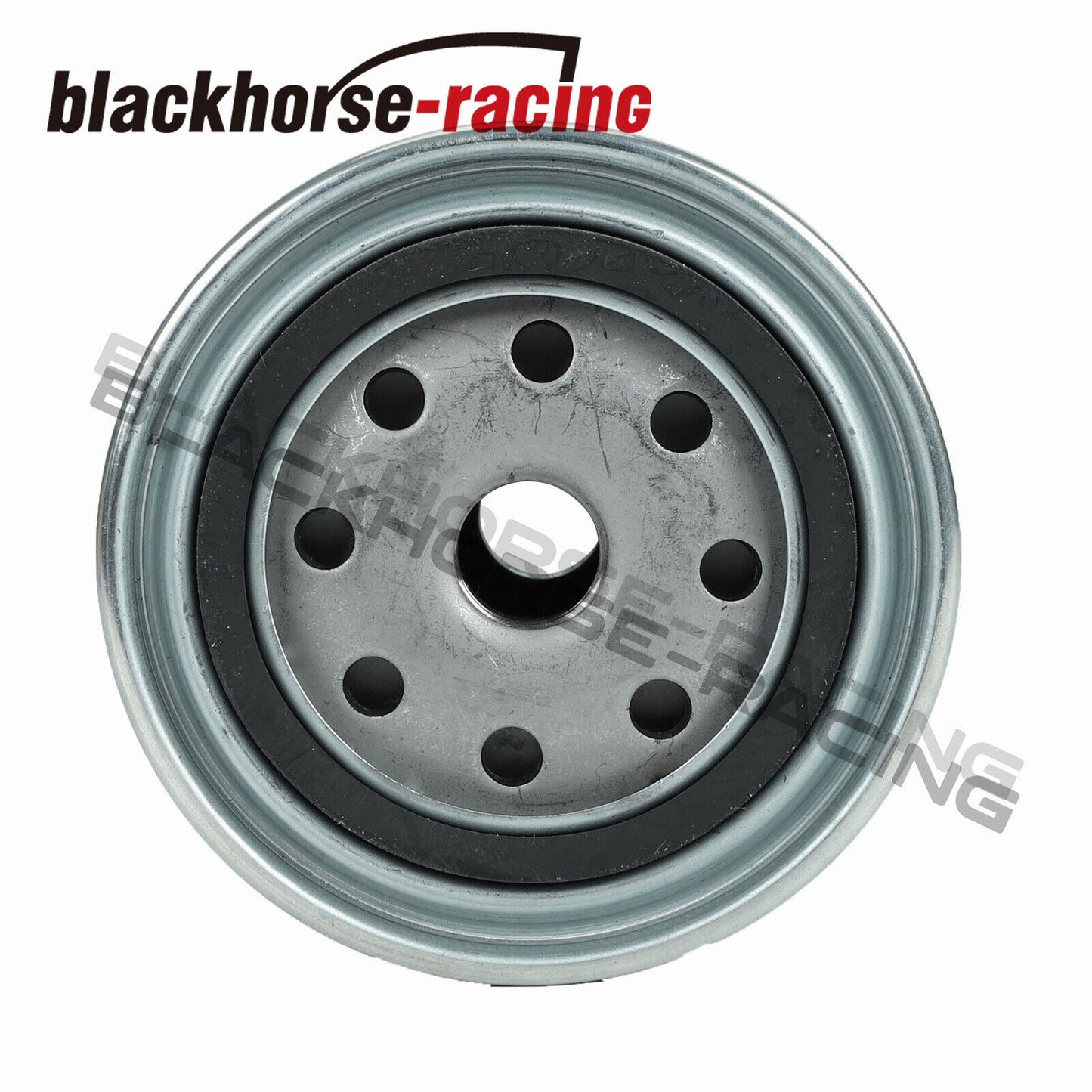

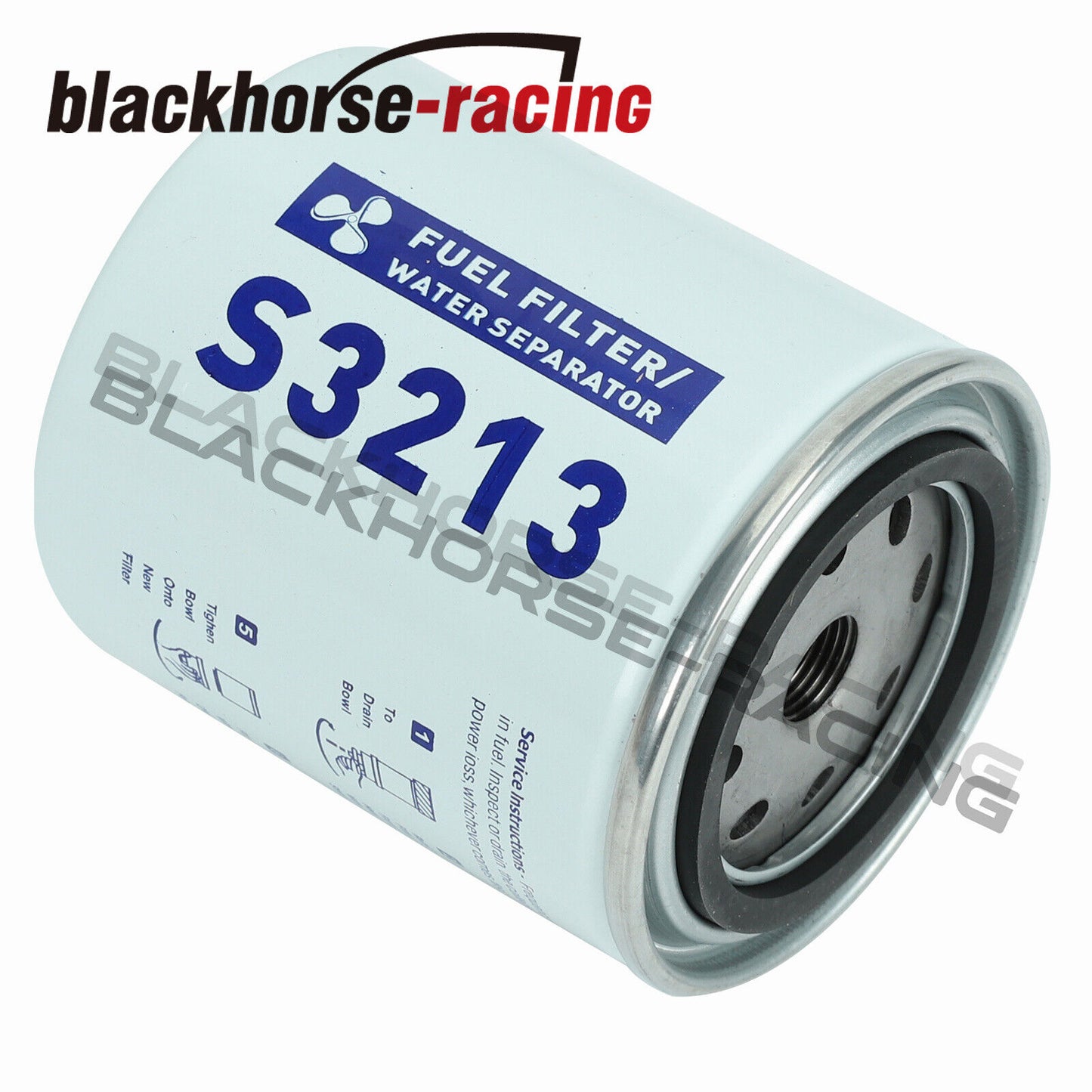

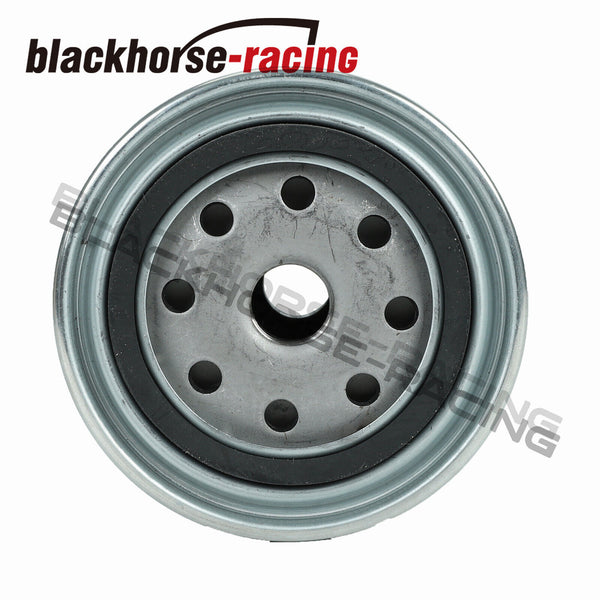

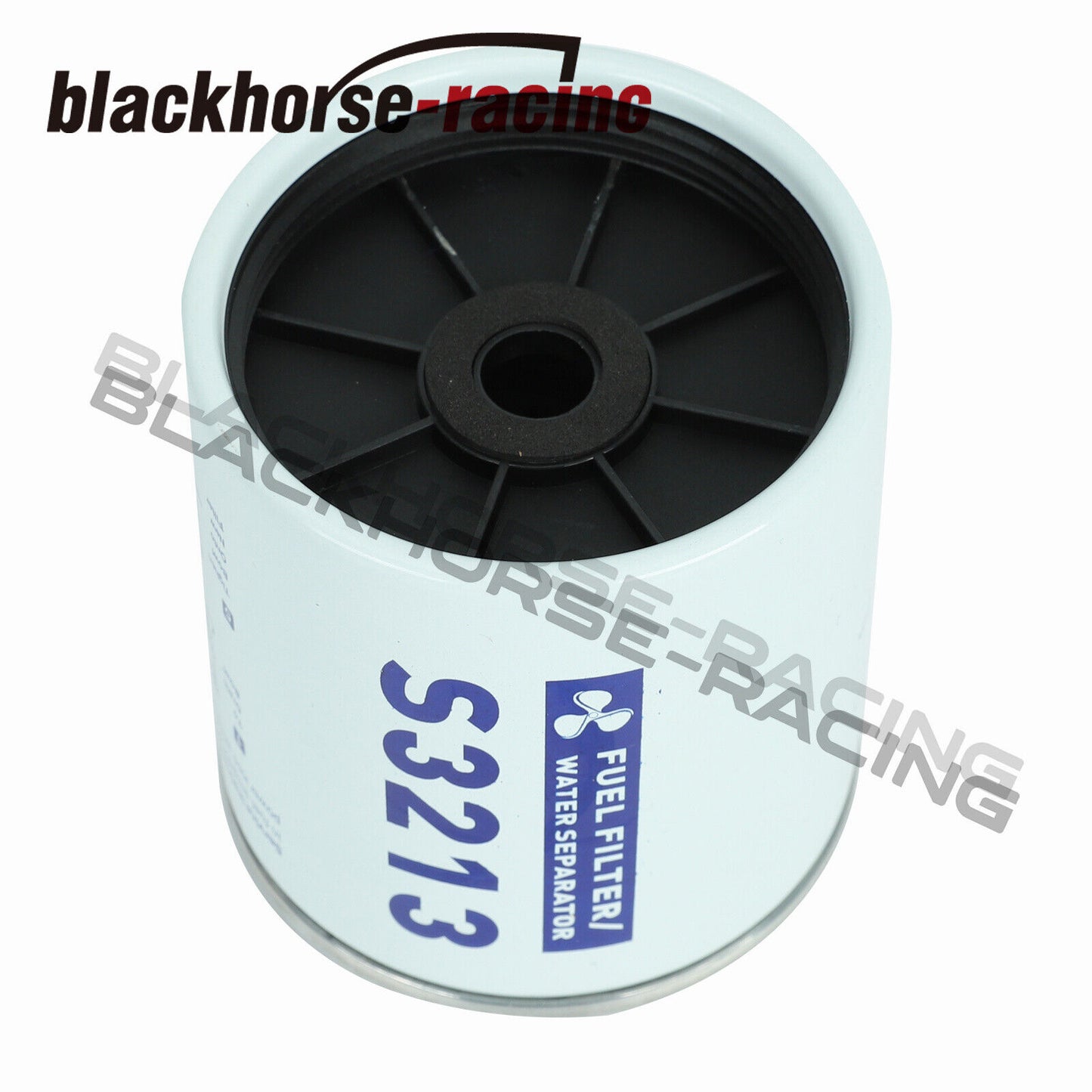

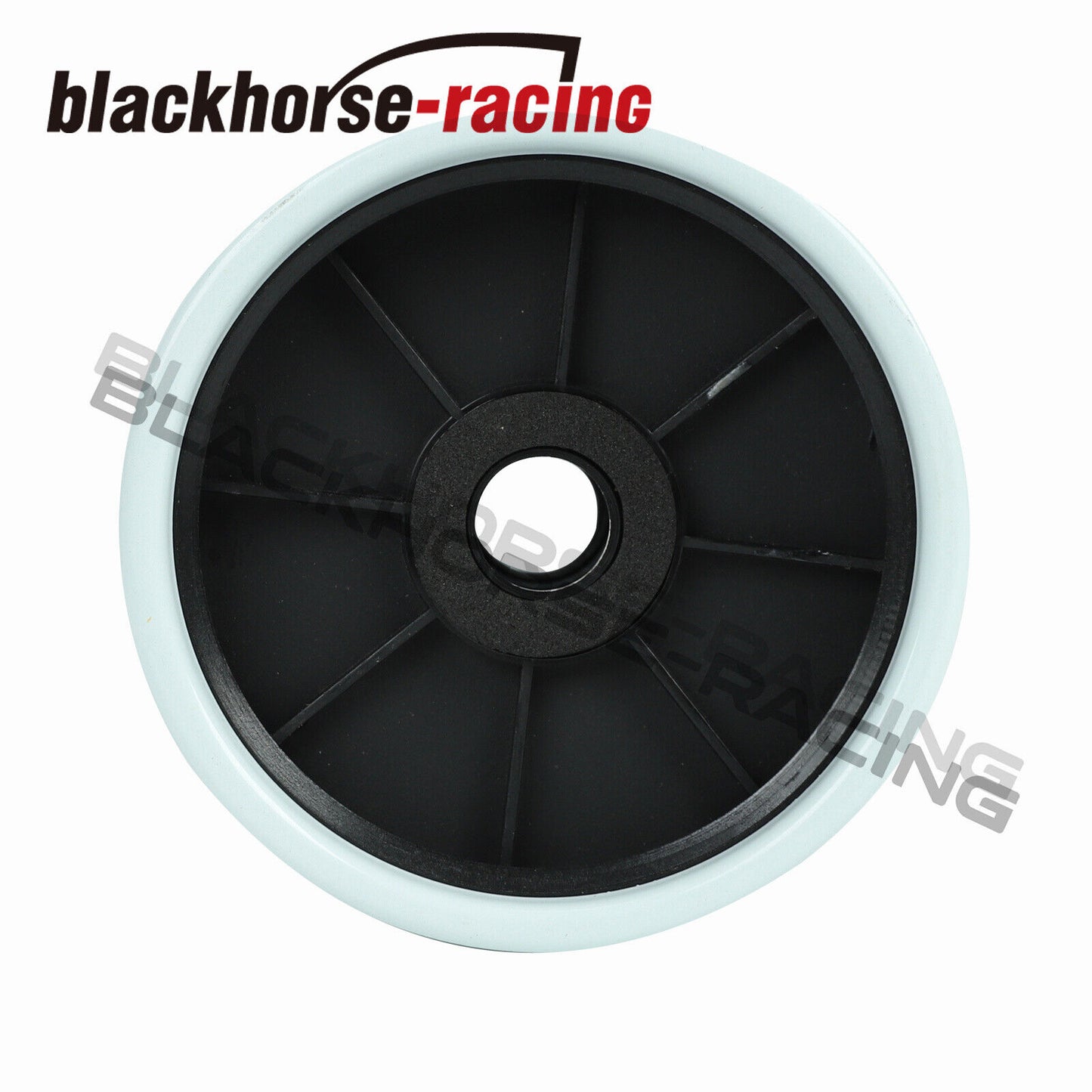

S3213 Fuel Filter Water Separator Filter Elements For Marine Yamaha Sierra
Regular price
$0.00
Shipping calculated at checkout.
Describtion:
- 100% Brand new and high quality
- Made of high-quality materials, durable and practical
- Type: S3213
- Size: Height: 102mm
- OD / Width Max: 96mm
- OD / Width Min: 93mm
- ID / Depth Max: 81mm
- ID / Depth Min: 16mm
- Applies to: Yachts ,marine(Mercury / Quicksilver or OMC)
- Type: Oil-water separator
- Housing material: iron plate
- Filter paper: filter paper for oil-water separator

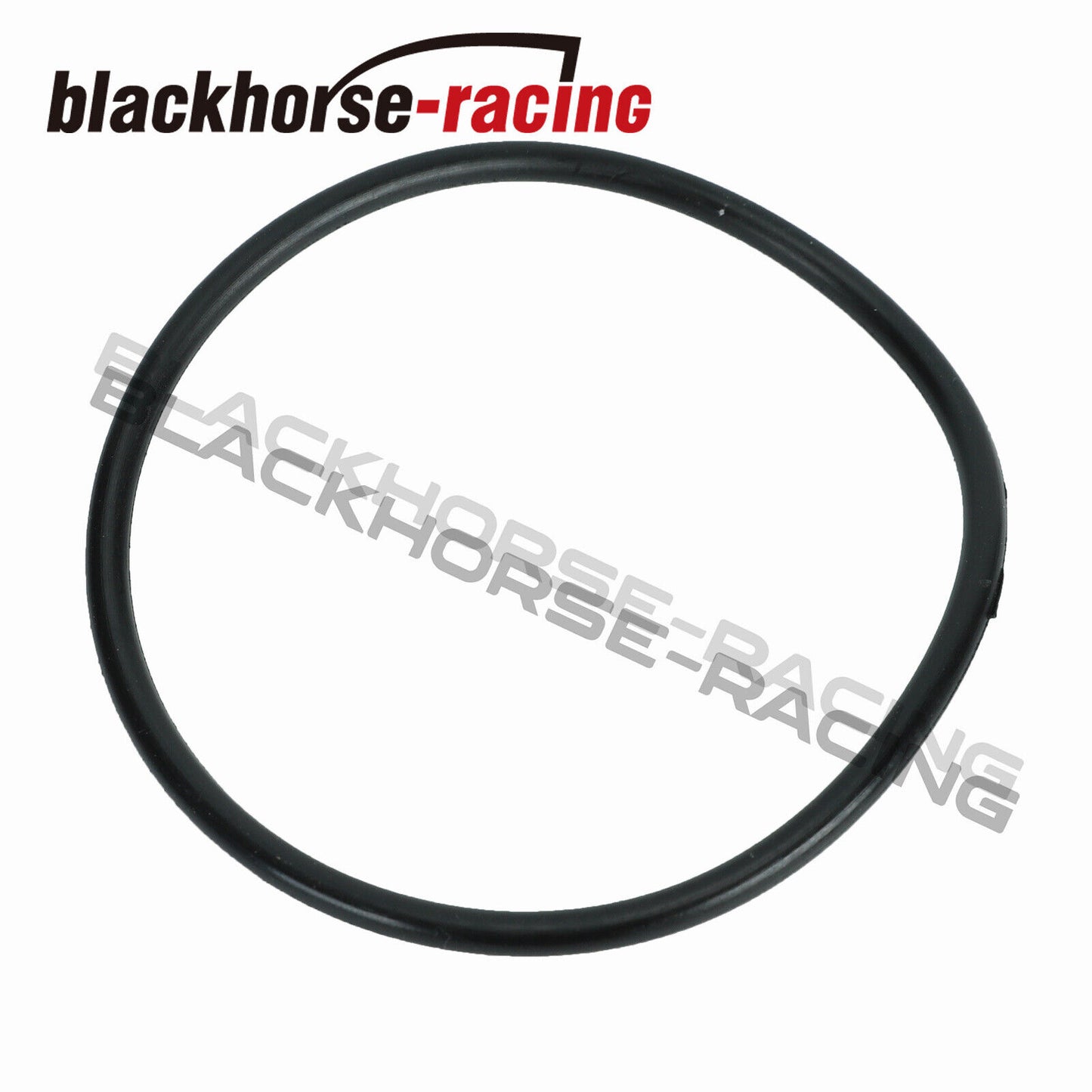

- Sealing ring: high quality nitrile rubber
- Plug: Brass
Package Contents:

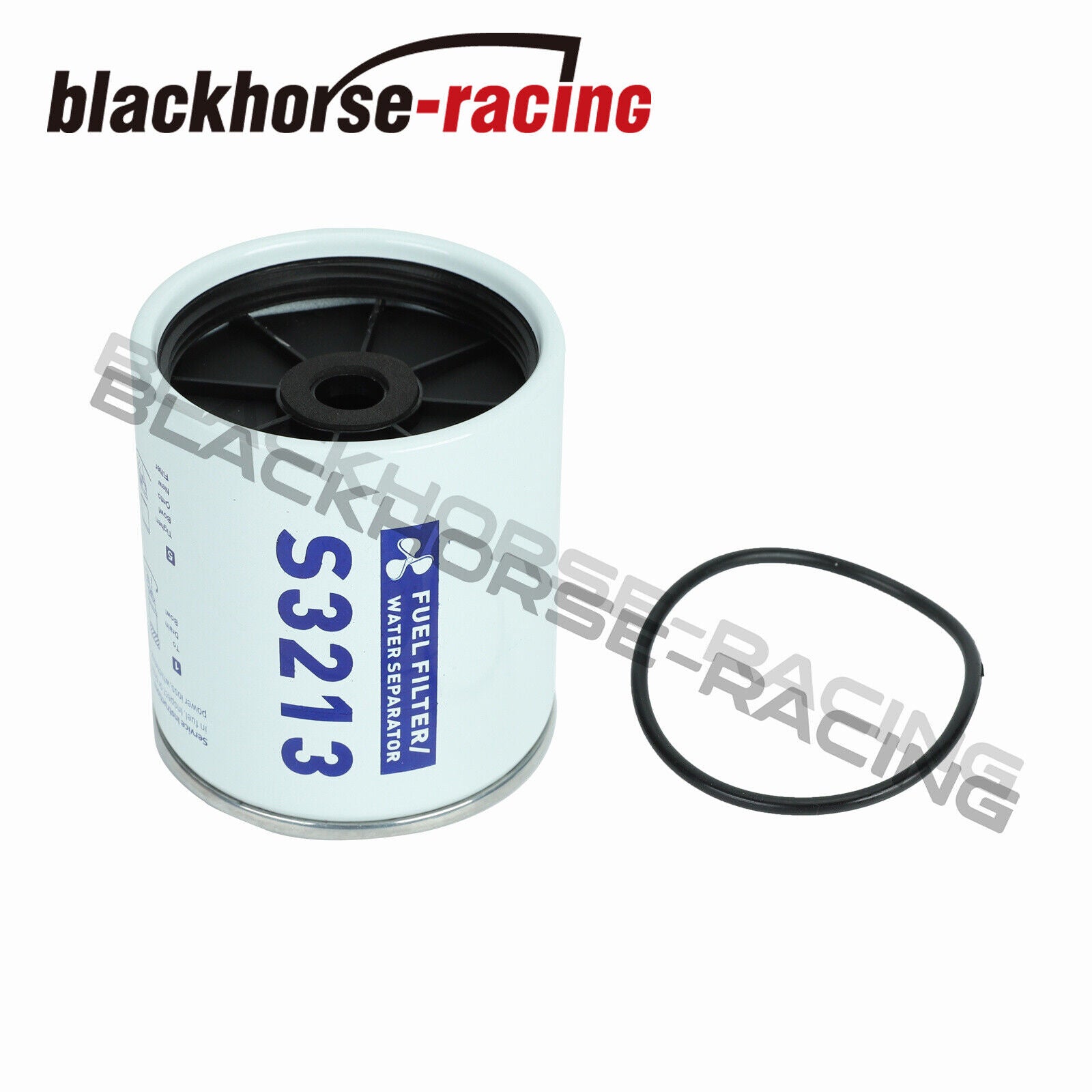

- 1*Fuel/Water Separator Filter element
Note:
- Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
To Replace Element:
- 1. Loosen self-venting drain plug and drain the elementsinto a container.
- 2. Remove filter elementsfrom mounting bracket with bowl connected.
- 3. Remove bowl from filter elementsand clean o-ring gland on bowl. BOWL IS REUSABLE * DO NOT DISCARD.
- 4. Lubricate o-ring with oil or grease and install on bowl.
- 5. Install bowl onto new element, tighten by hand.
- 6. Lubricate filter top seal with oil or grease.
- 7. Fill filter/bowl assemble with clean fuel and attach onto mounting bracket, tighten by hand.
- 8. Start engine and check to ensure there are no leaks.DE
