Radiator&Shroud Fan 3Row Aluminum Fit Chevy 1970-1981 Camaro/1978-87 Monte Carlo

Regular price $204.88 Sale price $245.86
Shipping calculated at checkout.

Description:

  • 100% Brand new and never been used.

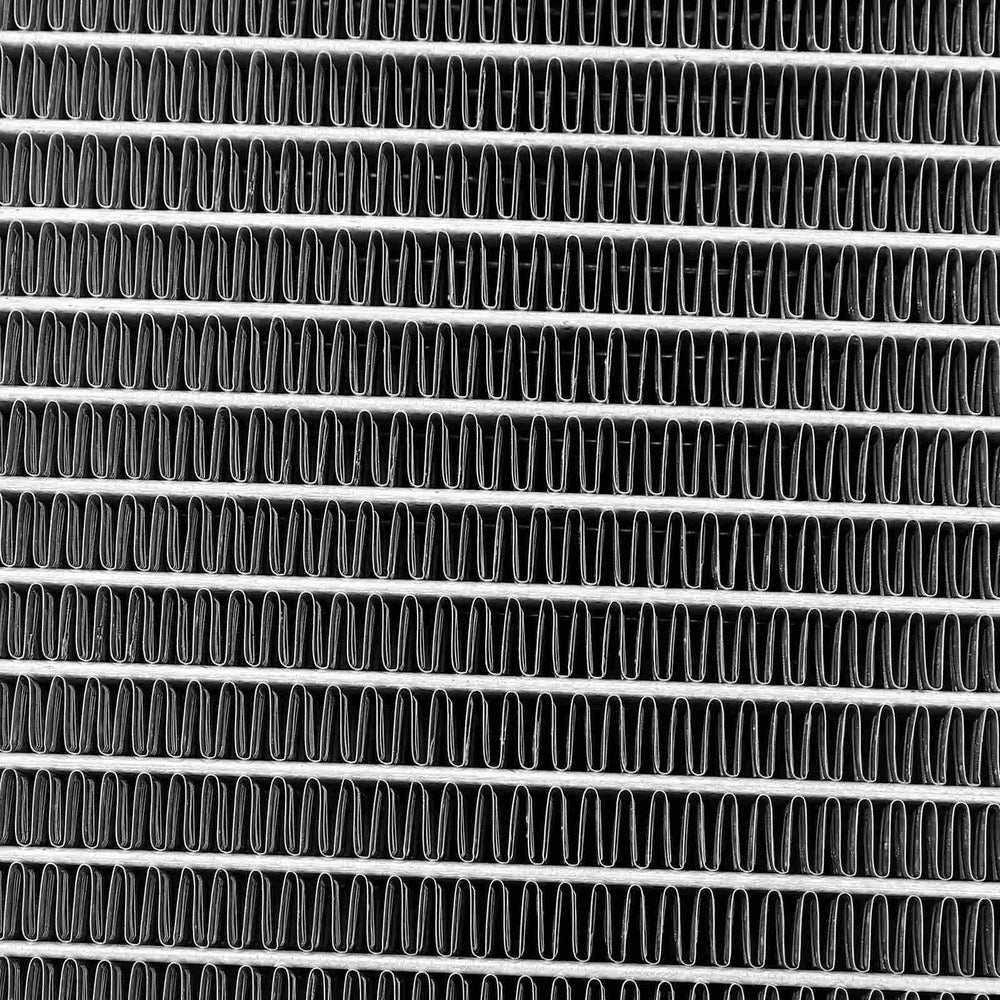

  • This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
  • This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
  • Professional Installation is Highly Recommended
  • No Instruction Included



  • RADIATOR:
  • Material: Full Aluminum
  • Core Dimensions: 16 7/8" H x 26-1/4" W x 2"
  • Overall Dimensions:  18-1/4" H x 31-5/8" W
  • Upper Inlet 1-1/2" located on the Driver side
  • Lower Outlet 1-1/2" located on the Passenger side
  • Trans Cooler Included -1/2" 20 STRAIGHT THREAD G1/4-
  • Mount Type: Saddle

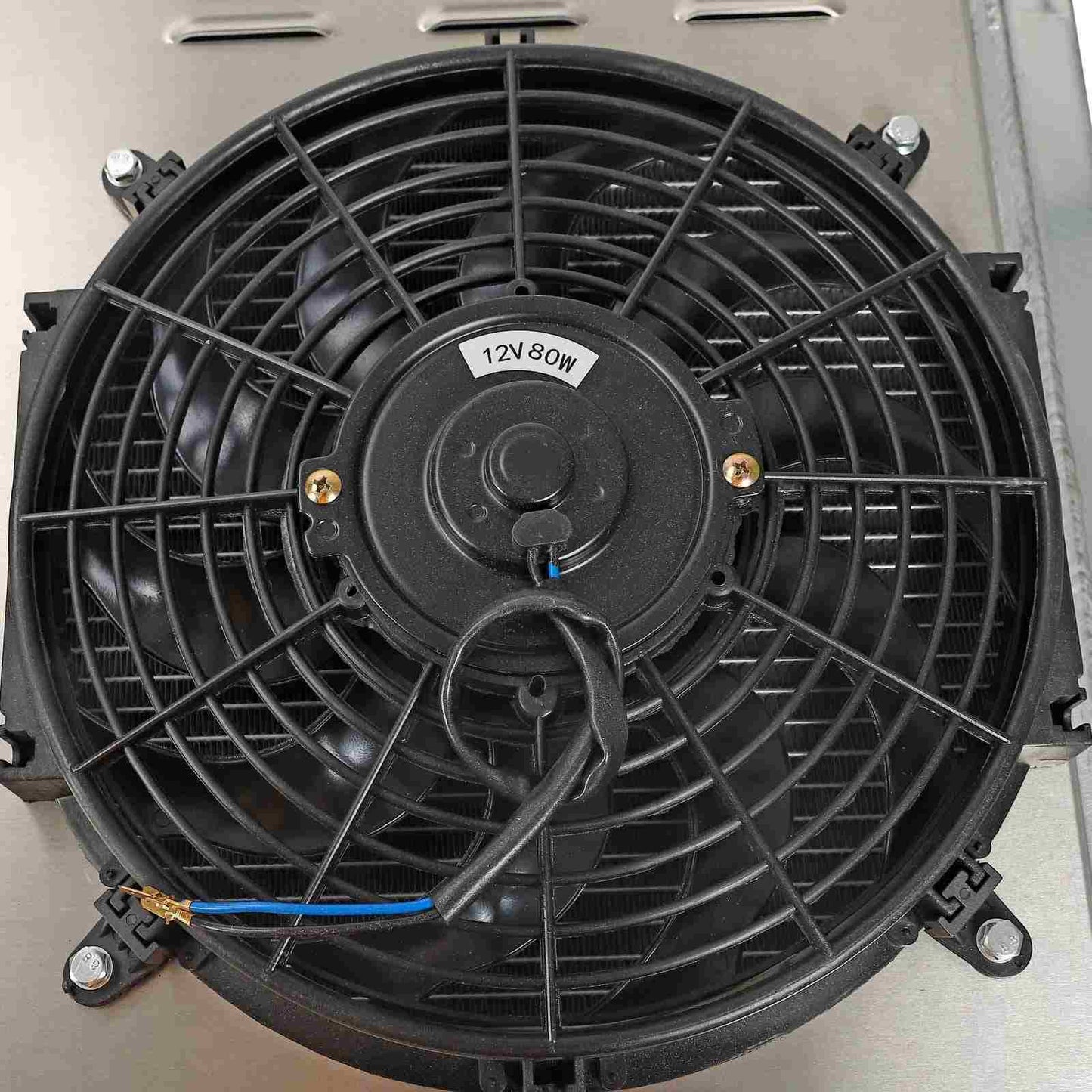

  • FANS:
  • Maximum Fan CFM: 1730 cfm
  • Fan Diameter (in): 12.050”
  • Thickness (in): 2.500”
  • Number of Blades: 10 blades
  • Maximum Fan RPM: 2,250 rpm
  • Blade Material: Plastic
  • Amp Draw: 12.70 amps
  • Includes the Mounting Tabs for an Easy Zip Tie Installation

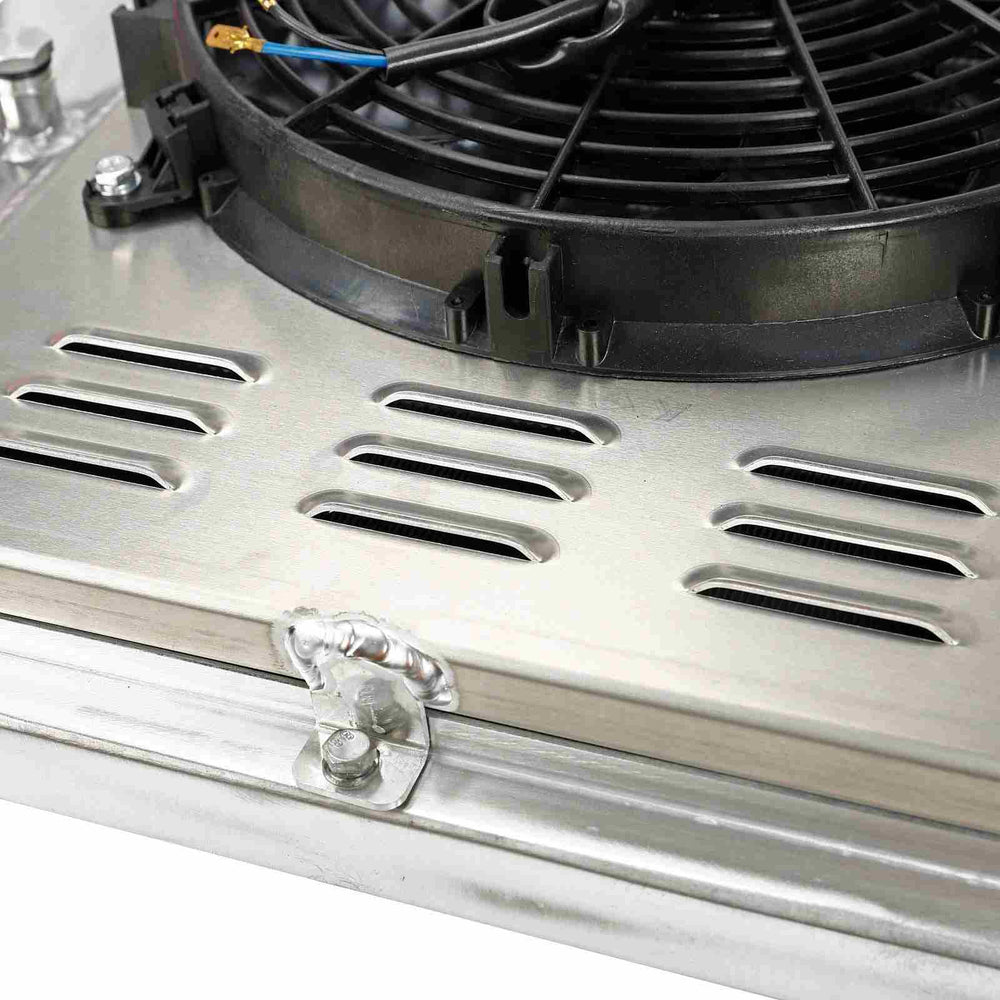

  • SHROUD AND FANS:
  • The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.



Package includes:

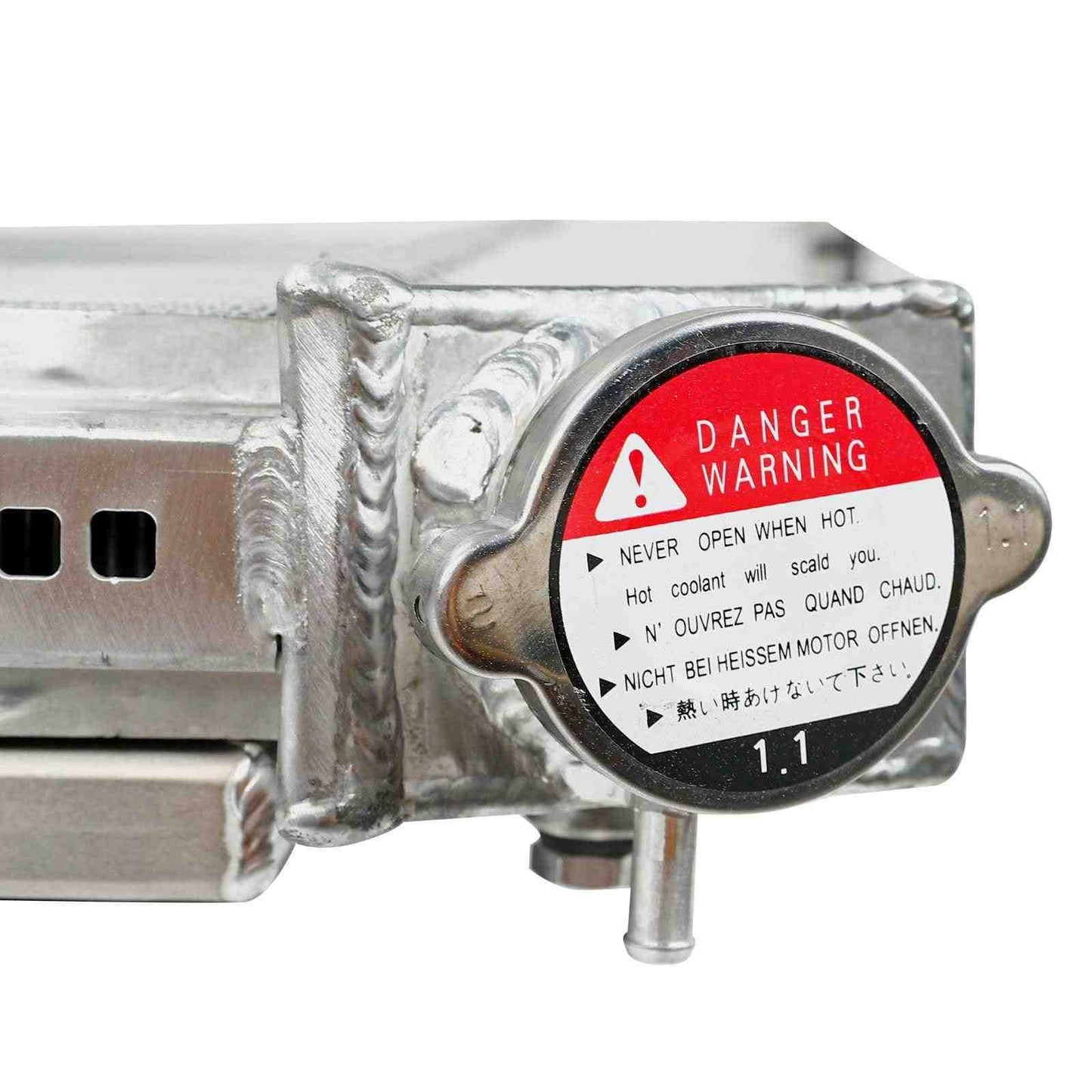

  • 1X 3-Row Aluminum Radiator (Includes Radiator Cap)
  • 1X Aluminum Shroud
  • 2X 12" Fans (Includes mounting kits)
  • Just as pictures show



Fitment:

  • 70-81 Chevy Camaro/75-79 Nova/68-73 Chevelle El Camino
  • 1980  Buick Century   4.3L 4.9L 5.0L
  • 1979-1980  Buick   Regal   3.8L 4.9L
  • 1979  Buick   Estate Wagon   5.7L
  • 1979-1980   Chevrolet  C10 / C20 /C30 /G10  4.1L 4.8L 5.7L
  • 1979  Chevrolet  C10 Suburban / C20 Suburban/ G20 / G30  4.1L  5.0L 5.7L
  • 1979  Chevrolet   Camaro /El Camino   3.3L 4.1L 4.4L  5.0L  5.7L
  • 1980  Chevrolet   Impala  / Monte Carlo /P30    5.0L 5.7L
  • 1979-1980  Chevrolet  K10/K20 /K30  4.1L 4.8L  5.7L
  • 1979  Chevrolet   K10 Suburban / K20 Suburban 5.0L 5.7L
  • 1979-1980 Chevrolet    Malibu  3.3L 3.8L 4.4L 5.0L 5.7L
  • 1980   GMC   C1500/ G1500 /C1500 Suburban / C2500 /Jimmy/ K1500 Suburban/K2500 Suburban
  • 1980 Oldsmobile  Cutlass/Cutlass Cruiser/ Delta 88  5.0L 4.3L
  • 1980  Pontiac  Catalina / Grand LeMans/ LeMans
  • For the year and models, please check the compatibility.
