For Gen III IV Billet Aluminum Oil Diverter Barbell For LS1 LS2 LS3 LSX LQ9 US
Regular price $7.55 Sale price
Shipping calculated at checkout.
- 100% Brand New, Never been used.
- CNC Billet 7075 billet aluminum
- Replace the plastic factory barbell
- The factory OE plastic barbell is approximately .020” to loose so particles as big as 500 Microns can leak passed the factory Barbell. When oil leaks pass the Barbell it goes unfiltered directly to the Cam Bearing, Lifters, Crank and Rod Bearings.
- oil filter will filter out approximately 25 Microns depending on the brand of filter. Our Billet Barbell fits with approximately .001” clearance which will let only about 20-25 Microns pass by,this is the same as the filter.
- Also another important part is the shaft of the Barbell. The oil has to flow around it to get through to the oil port. This Billet Barbell has a 30% smaller shaft for much less flow restriction.

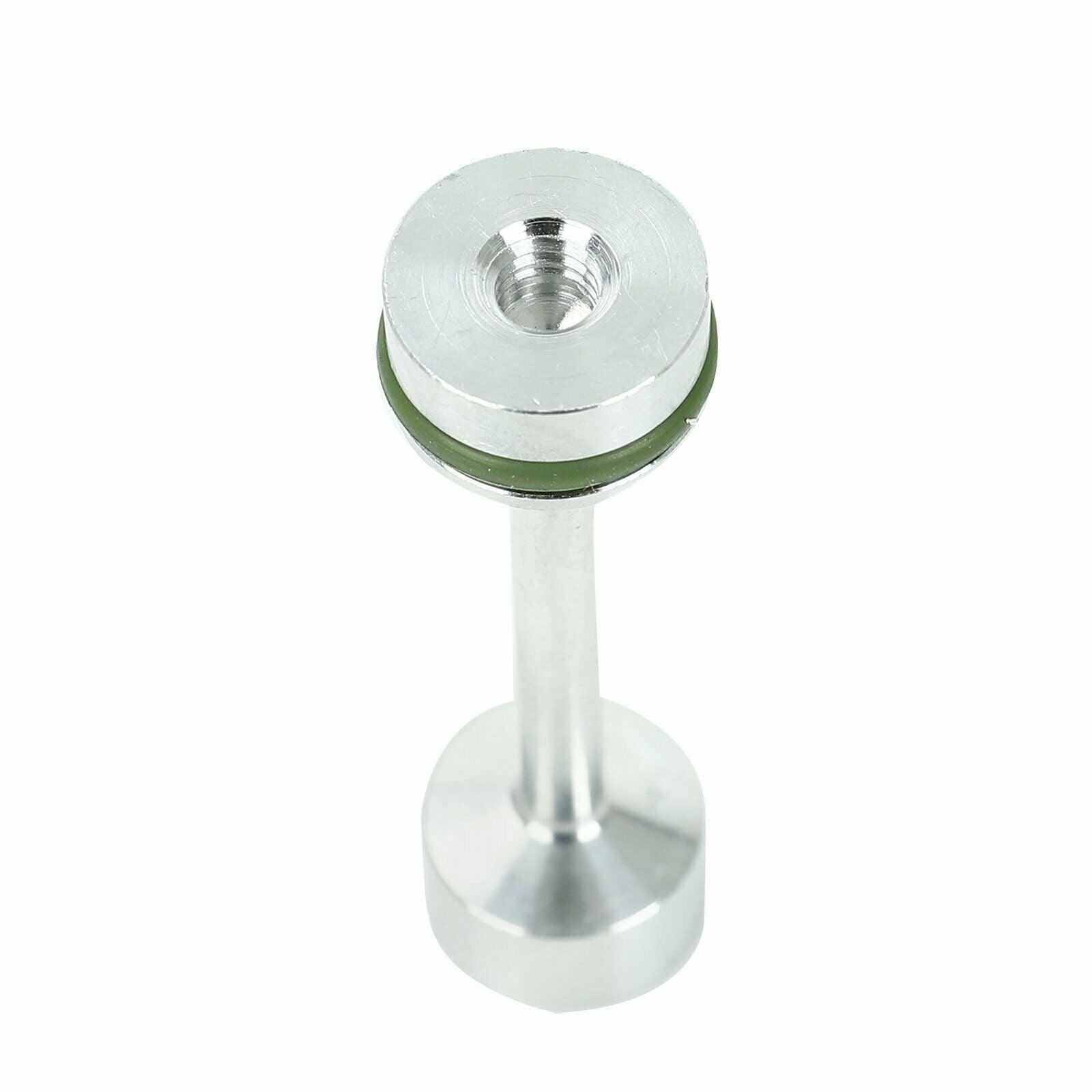

- Also this come 1/4-20 threaded hole in the end of our Barbell for easy removal. Just screw a 1/4-20 bolt in and pull the barbell out.
- Better engine protection from much less and smaller particles bypassing, smaller less restrictive shaft for better oil flow, replaceable High Temperature Viton O-ring and for ease of service a threaded 1/4-20 hole.
- Professional Installation is Highly Recommended (No Instruction Included)
- 1 x Aluminum Oil Diverter Barbell

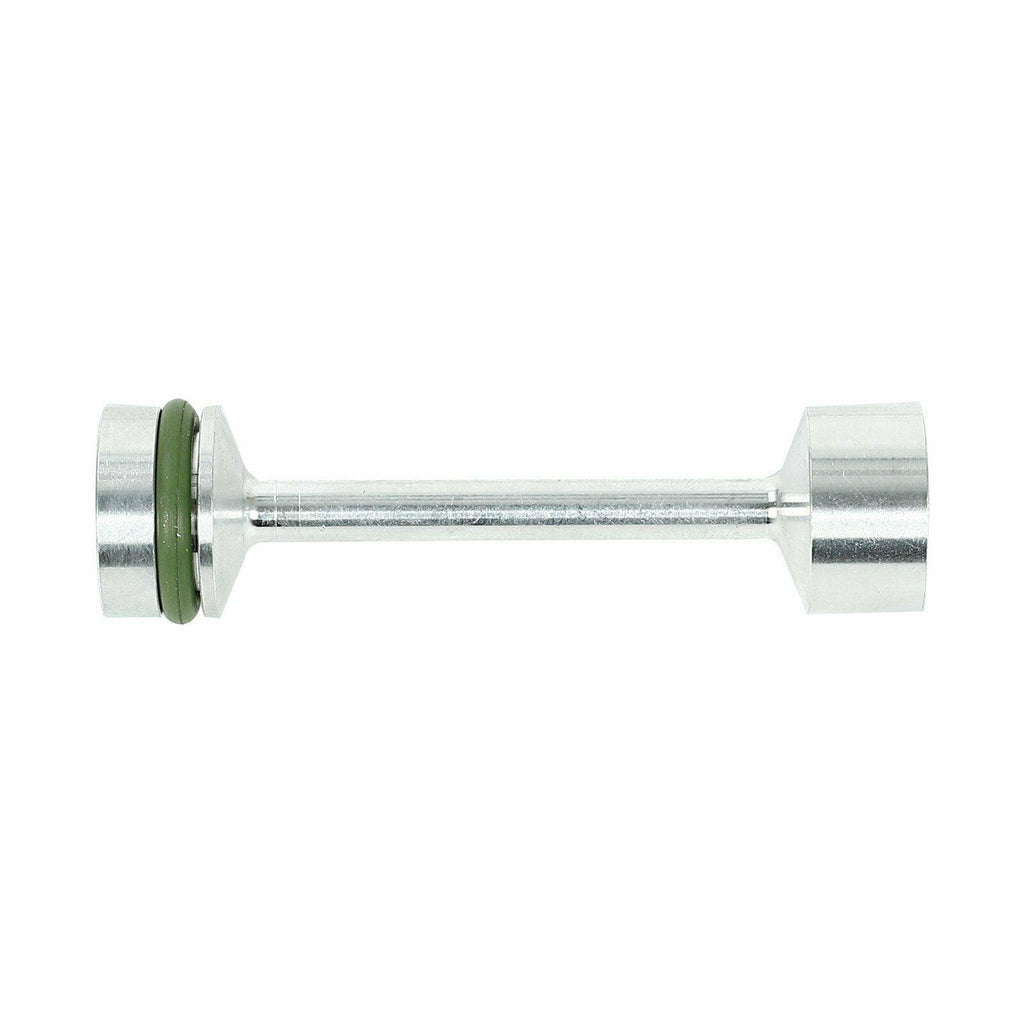

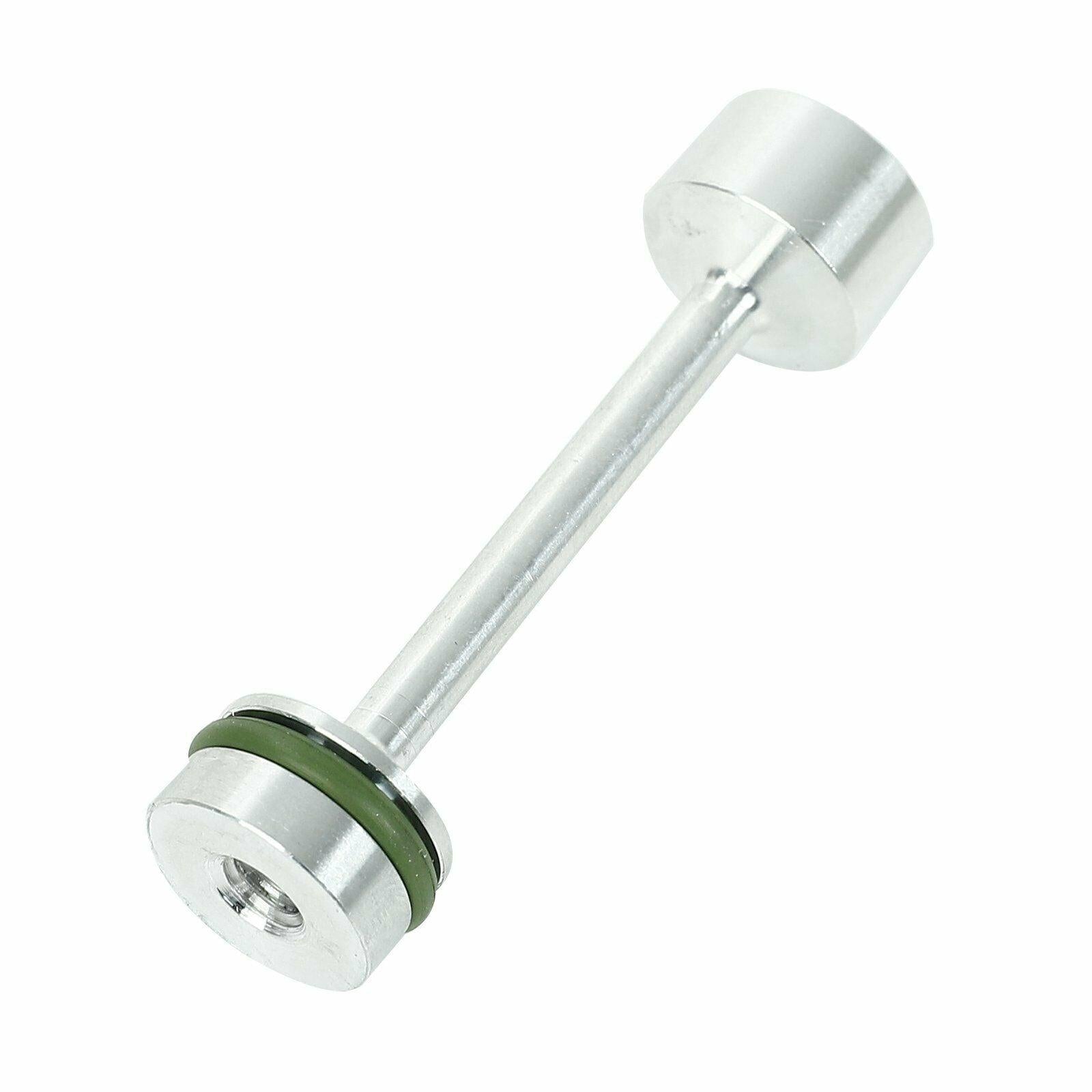

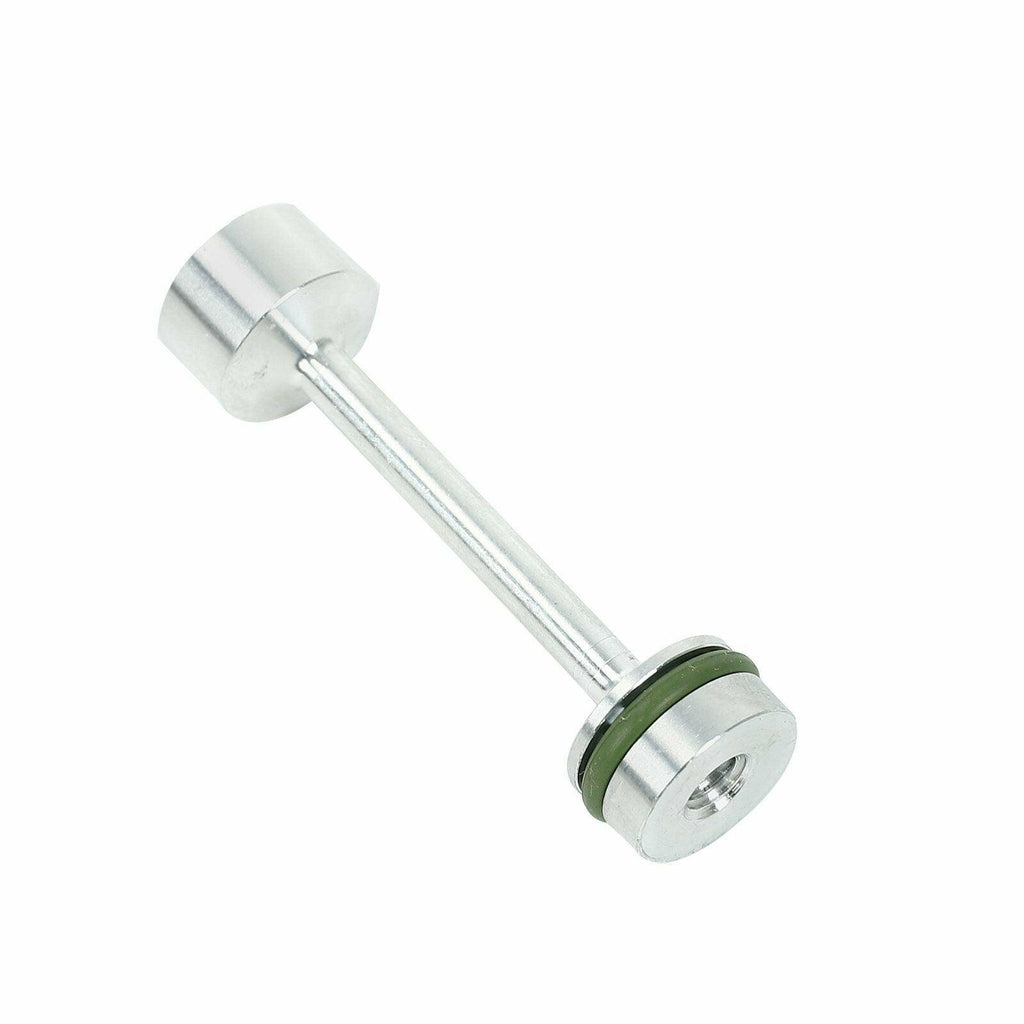

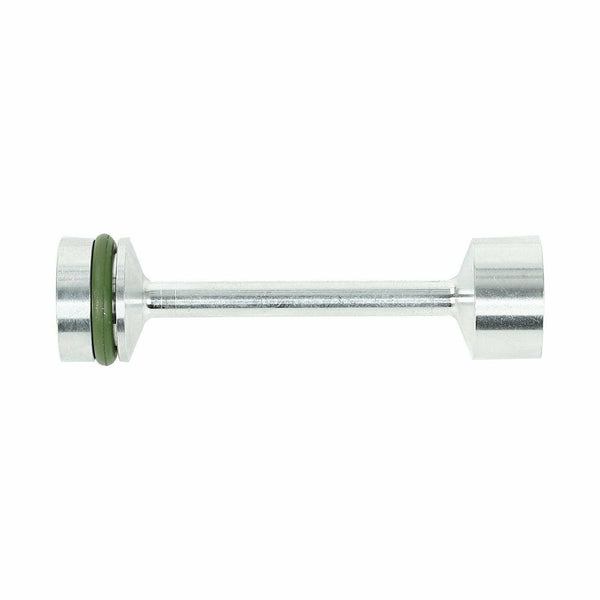

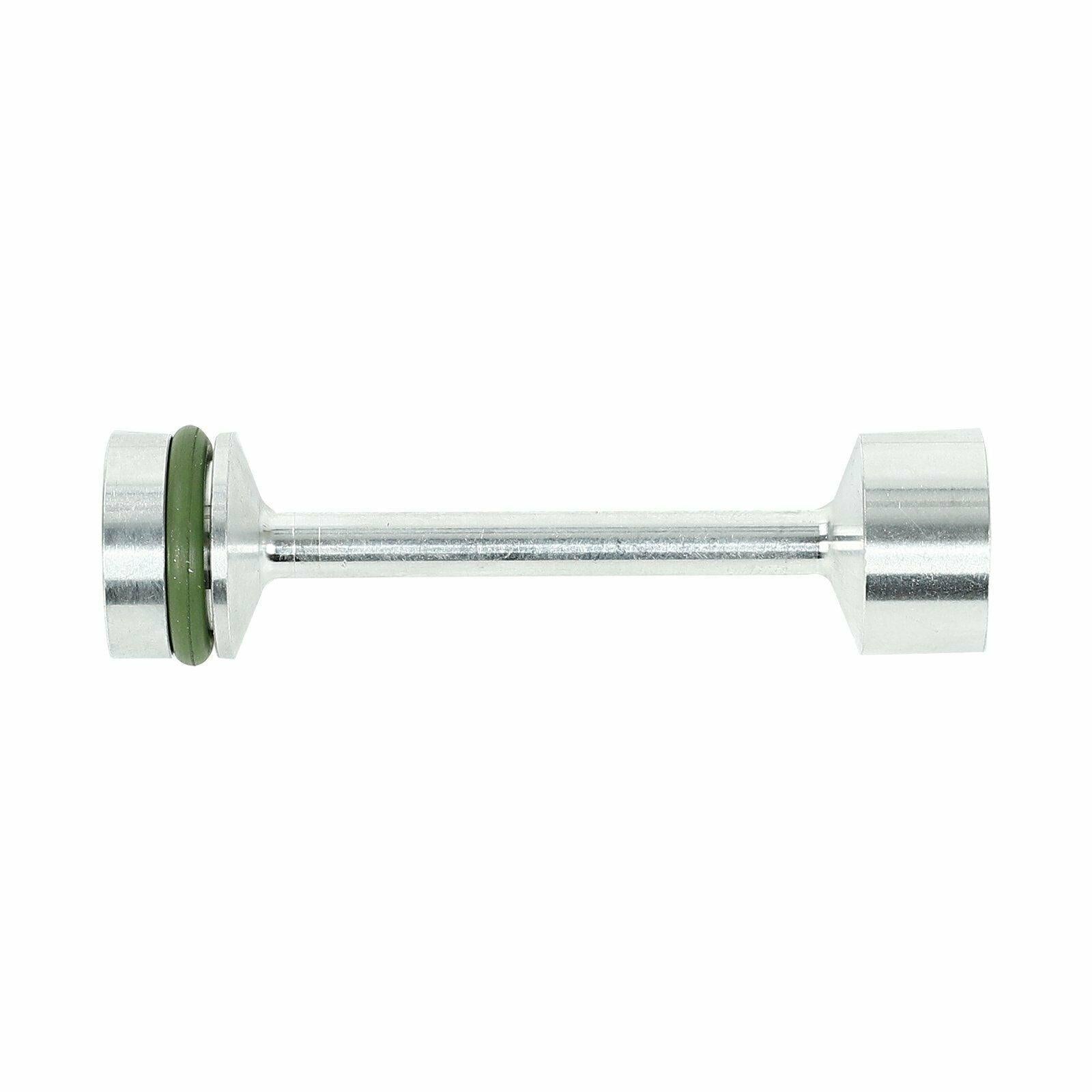

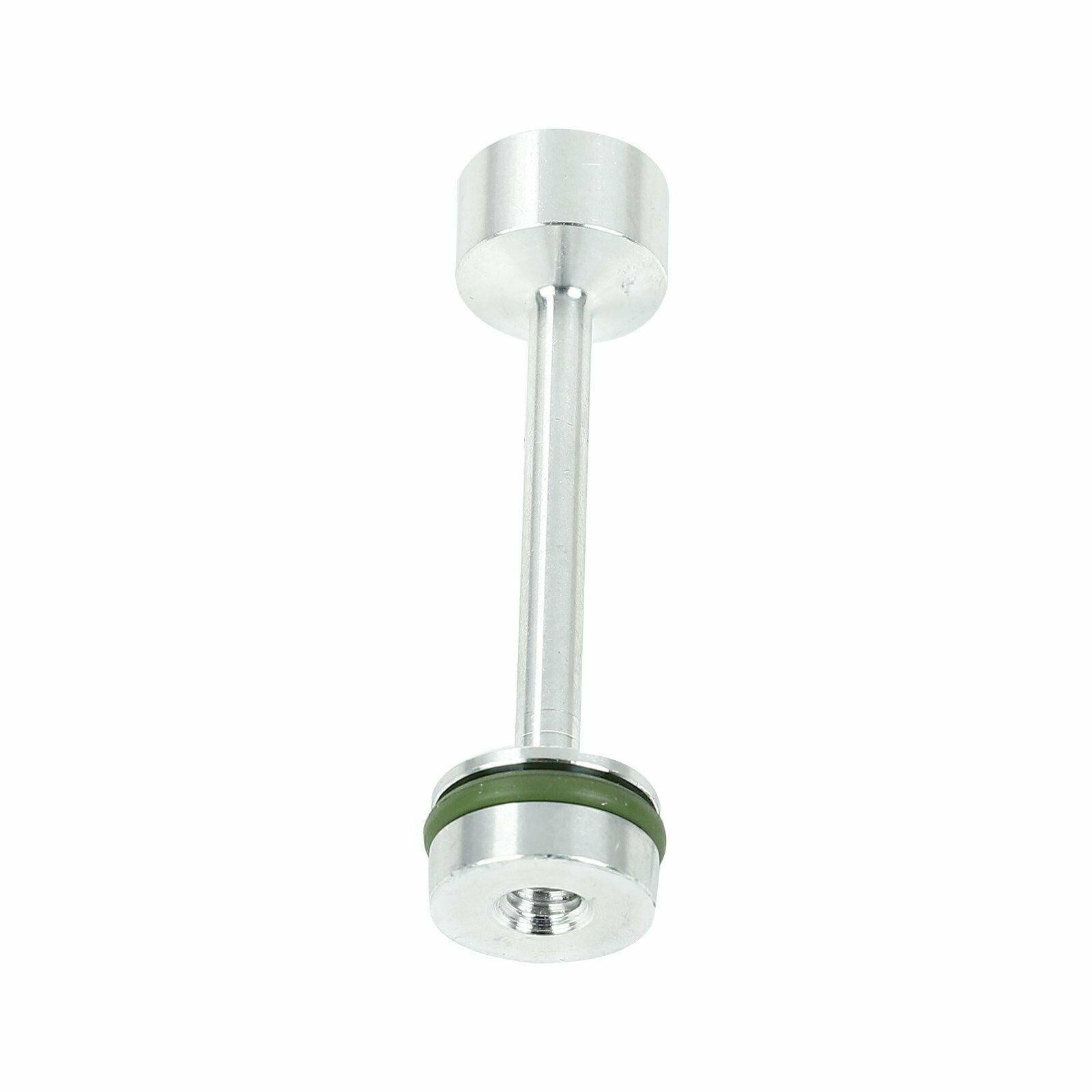

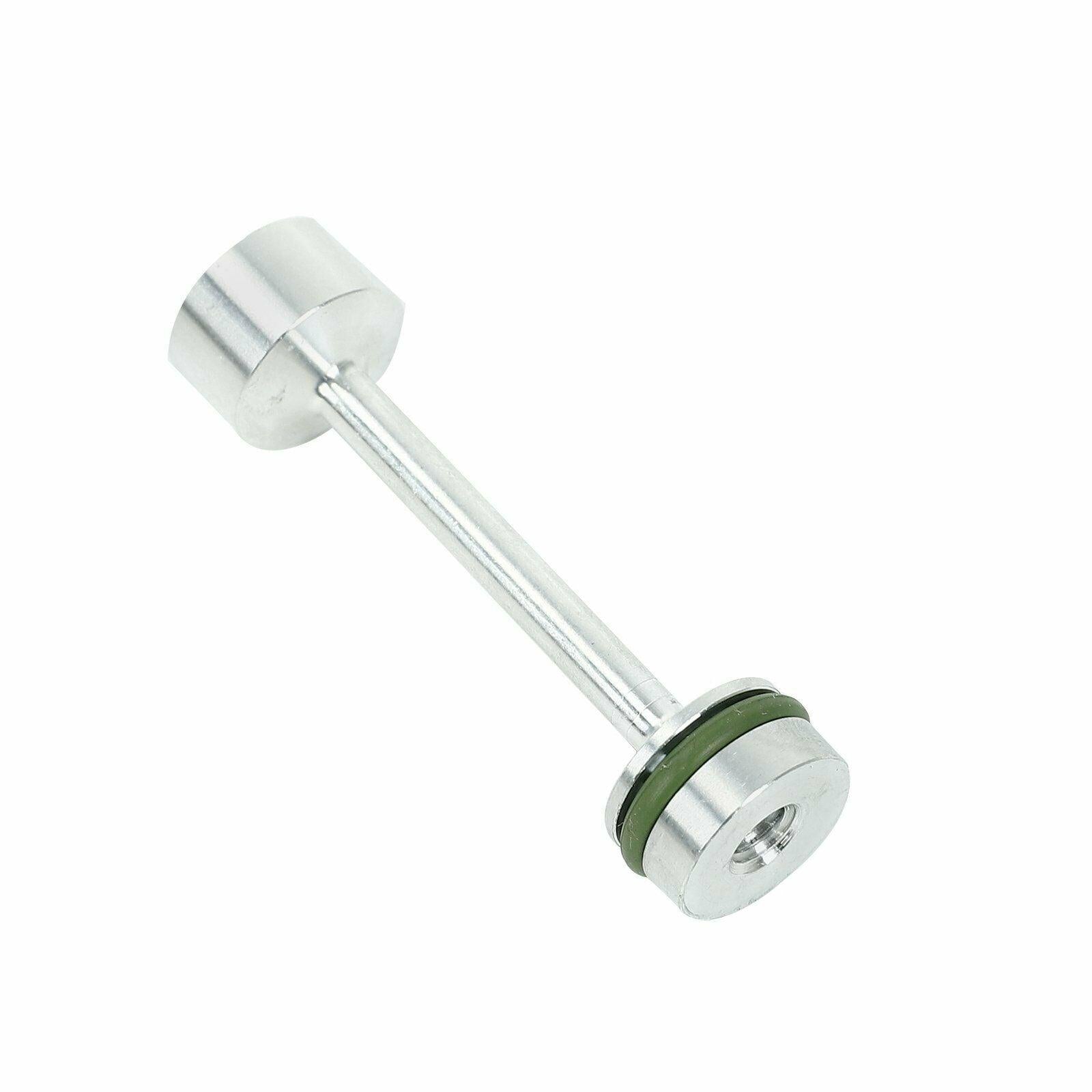

- As the picture shown
- Fits all Gen 3 and Gen 4 LS engines including 4.8 5.3 5.7 6.0 6.2 7.0 LS1 LS2 LS3 L92 LQ4 LQ9
