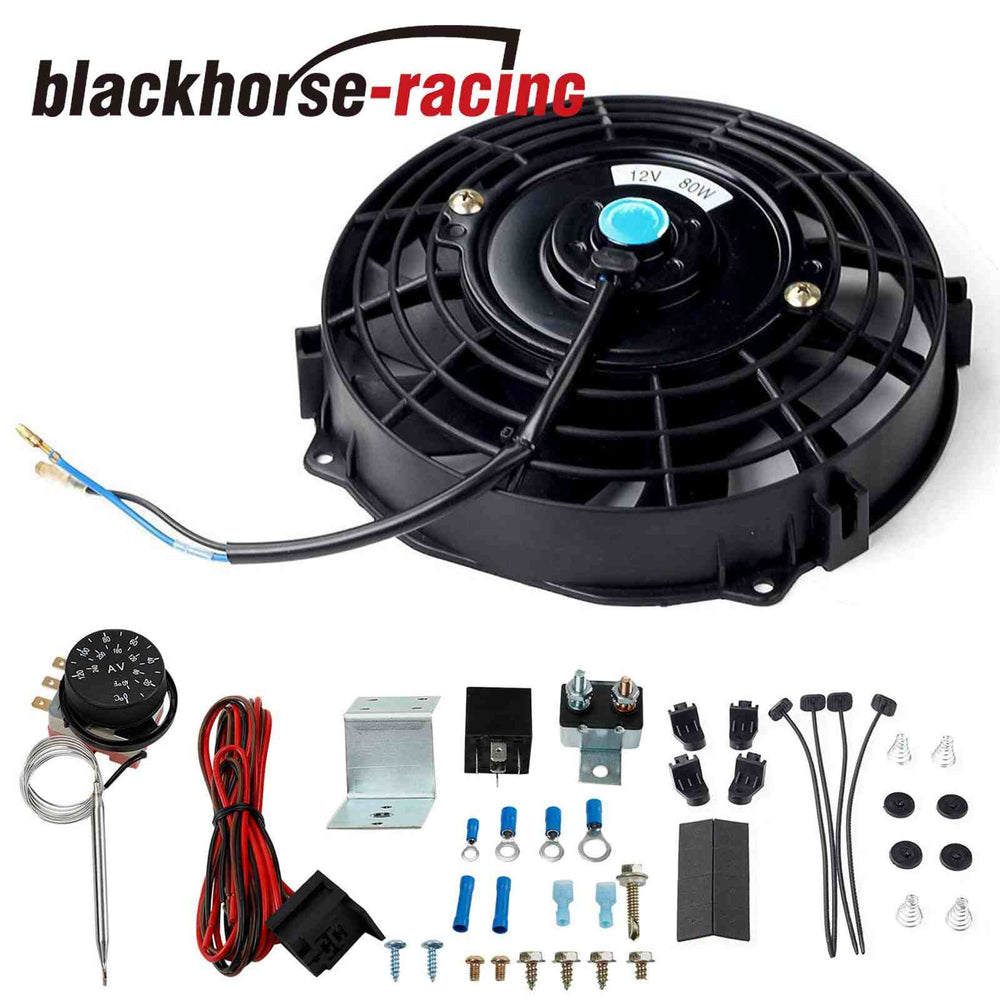

7" Cooling Slim Push Radiator Fan 800CFM 2900±10% & Thermostat Control Relay Kit
Regular price $41.69 Sale price
Shipping calculated at checkout.

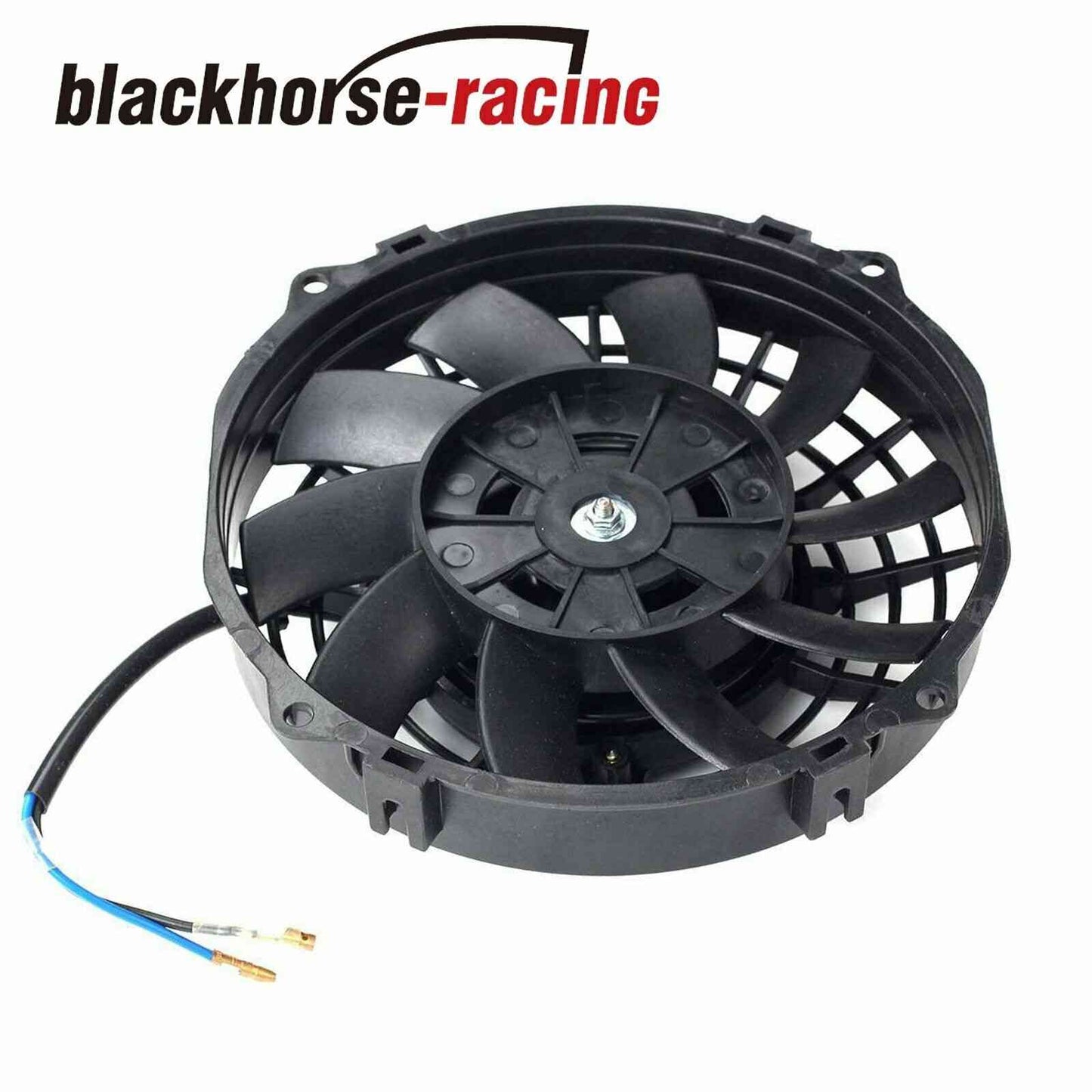

- American Volt high performance 7 inch reversible 12V electric cooling fan.
- Custom upgraded 80 watt motor produces more CFM air flow volume.
- Fan motors are sealed to be water and dust resistant, increasing longevity.
- Fan is configured by default as an air puller out of the box.
- Blade and wiring can be reversed to make the fan an air pusher.
- Durably built to be shock resistant for on-road and off-road vehicle applications.
- Professional installation is highly recommended
- Instructions Included
- 100% Brand new and never been used.
- Fan Size: 7 Inch
- Blade Type: Curved
- Motor Size: 80 Watts
- CFM Rating: 800 CFM
- RPM Rating: 2900±10% RPM
- 10 Blades
- 12 Volts
- ≤5 AMP DRAW
- Material: Plastic Shroud/Steel Motor
- Dimensions: 15" x 14" x 2.5" thickness at center x 1.5" thickness at edge

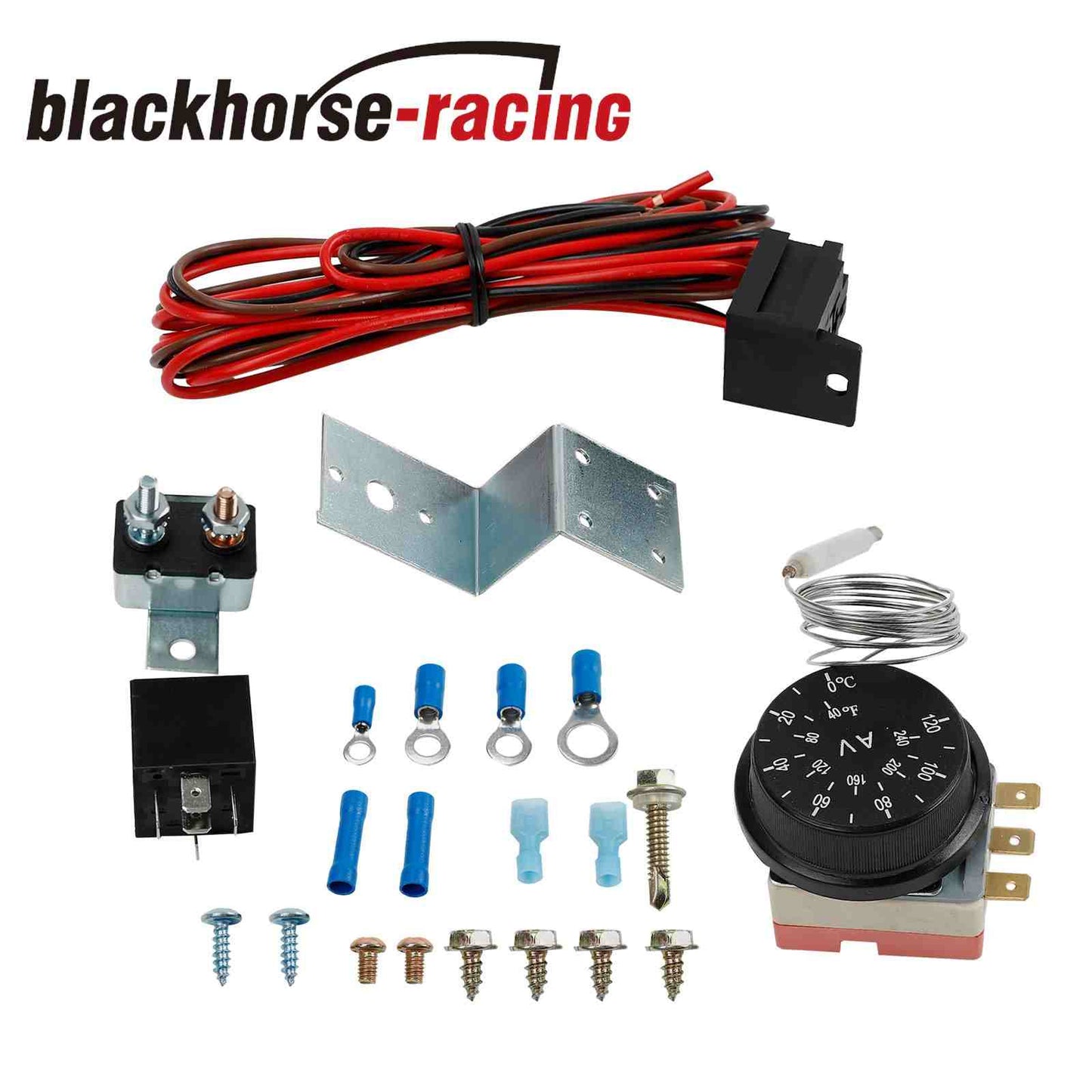

- Thermostat Kit:
- Adjustable fan thermostat with complete installation wiring kit.
- Measures liquid or contact temperature and turns on electric fan.
- Flexible temperature turn dial control range of 32-250'F (0-120'C).
- Thermostat can be wired to turn fan on or off when set temperature is hit.
- Turn-off temperature is always 15 degrees less than turn-on.
- Thermostat dial has both Celsius and Fahrenheit temperature markings.
- Probe can be pushed into radiator, condenser, oil cooler fins or inlet tube.
- Capillary thermostat tube wire is 30 inches in length.
- Universal design for all radiators, oil coolers, transmission coolers, condensers etc.
- 1X 7" Electric Radiator Engine Fan
- 1X Adjustable Thermostat
- 1X Turn Dial w/ Temp Markers
- 1X Mounting Bracket

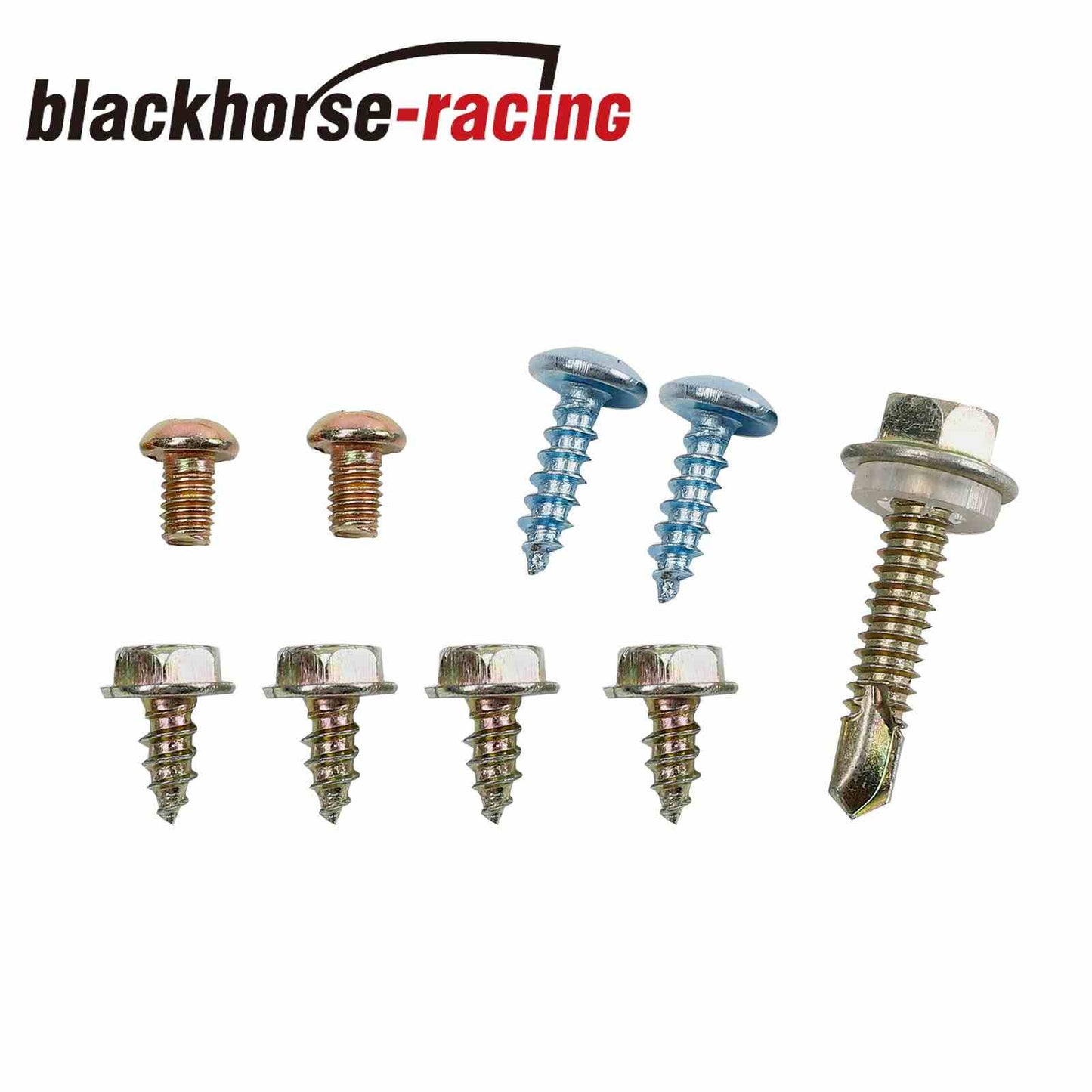

- 5X Mounting Screws
- 2X Butt Connectors

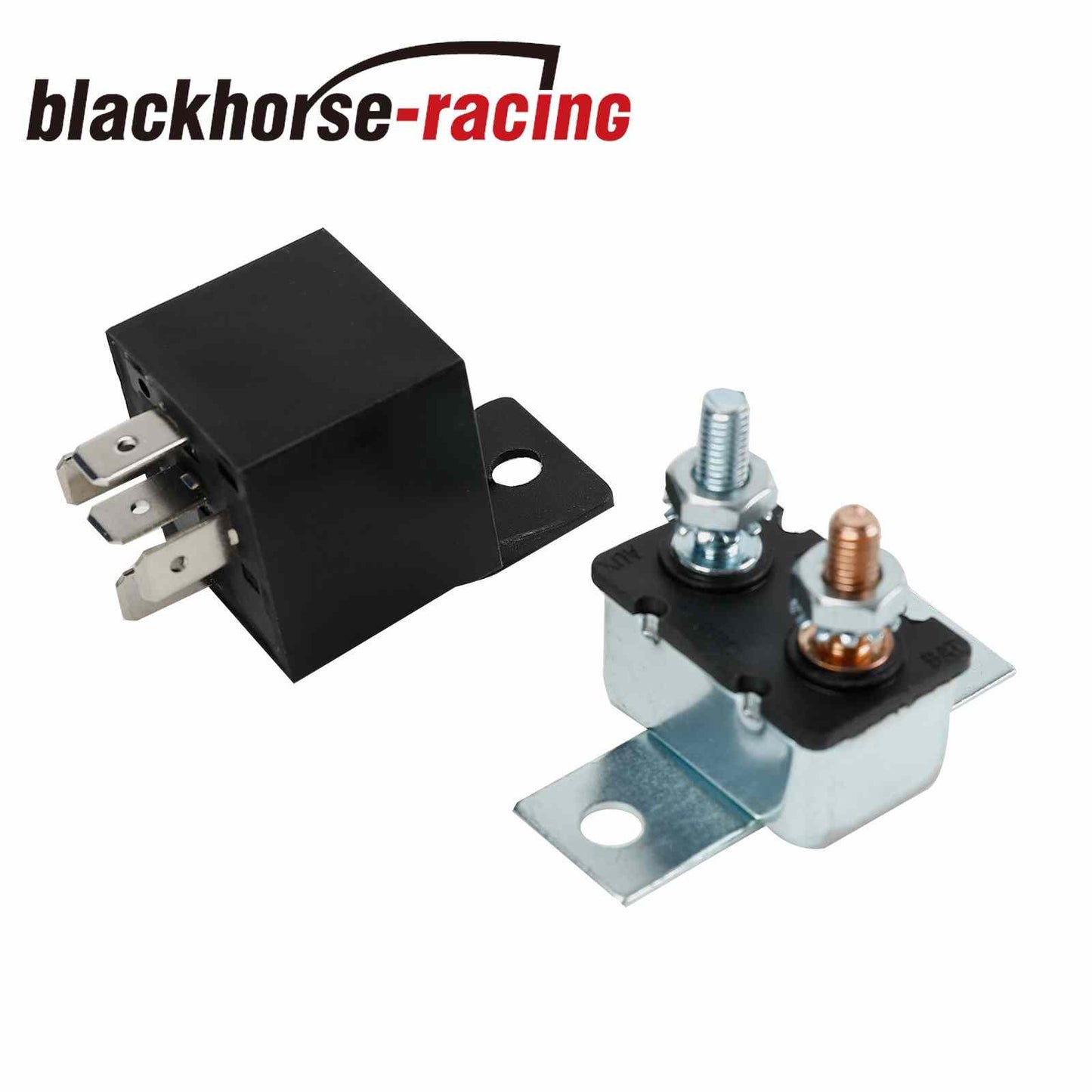

- 1X 30 Amp Circuit Breaker
- 2X Female Connectors
- 1X 40 Amp Relay
- 1X Large Ring Terminal
- 3X Small Ring Terminals

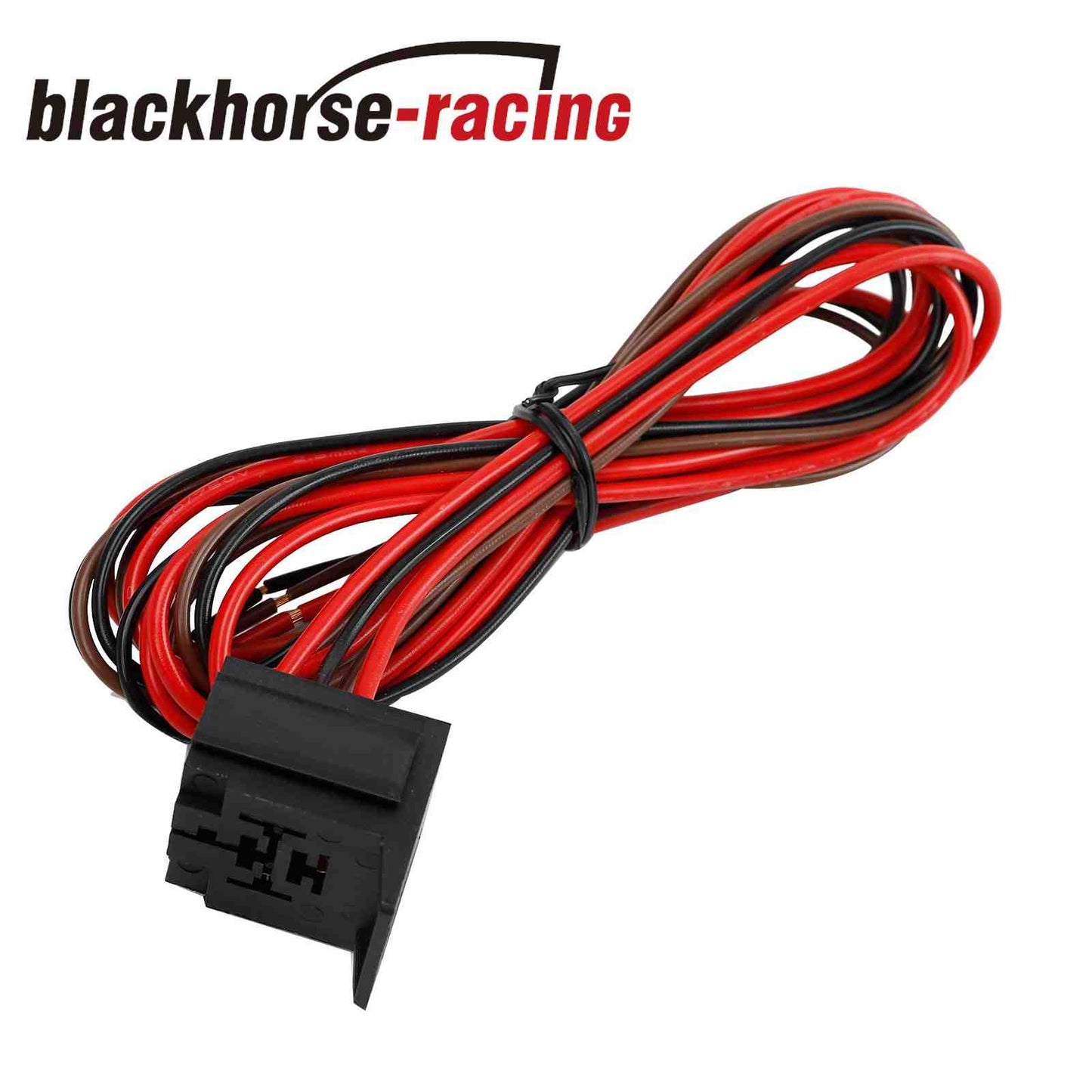

- 1X Wire Harness
- Just as pictures show
