3 Row Radiator+Shroud Fan For 1959-1965 Chevy Bel Air Impala El Camino Chevelle
Regular price $185.99 Sale price
Shipping calculated at checkout.

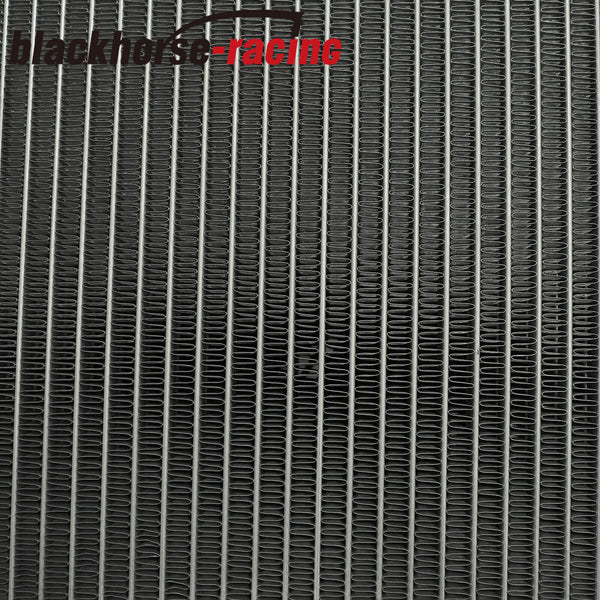

- This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
- 100% Brand new and never been used.
- Made of High Quality Full AA5052 Aluminum Construction
- Stronger and Higher Capacity for Coolant than Stock Units
- 3-Row Light-Weight Racing Design

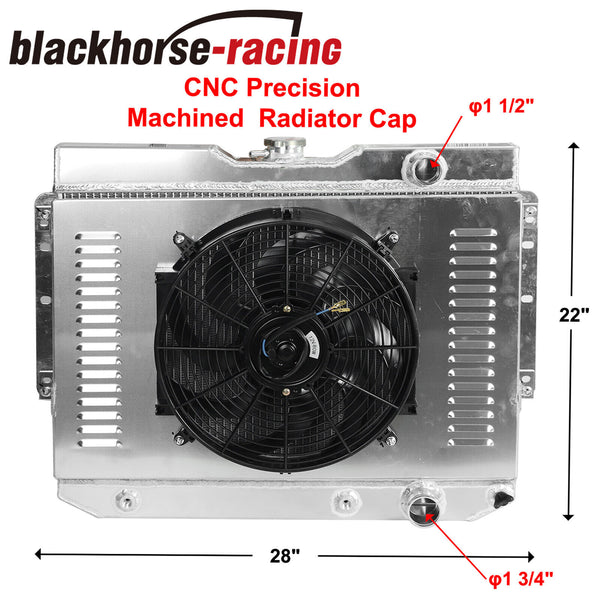

- Core Size: 412 x 628 x 44mm (16.22" x 24.72" x 1.73")
- Overall Size: 547 x 710 x 98mm (21.54" x 27.95" x 3.86")
- Inlet Hose Connection: 1 1/2" Passenger Side
- Outlet Hose Connection: 1 3/4" Passenger Side
- MOUNTING BRACKET BOLT SPECS:
- 26 3/4" WIDE CENTER TO CENTER
- 10 3/8" VERTICAL CENTER TO CENTER
- Direct Bolt-On OE Fitment or Replacement
- Improves Cooling by 35% to 45% Temperature
- Professional Installation is Highly Recommended
- No Instruction Included
14" Slim Fan:
- 12V, 90W
- ≤9.5 AMP DRAW
- 8 Blades
- Color: Black
- Fan Diameter: 14.72"
- Fan Thickness: 2.64"
- Maximum Fan CFM: 900 CFM
- Maximum Fan RPM: 2000±10% RPM
- Includes the Mounting Tabs for an Easy Zip Tie Installation
- Easy direct installation, require NO modification
- OE Fitment or Replacement, Push or Pull Type
Thermostat Relay Kit:
- Universal fit for any automotive vehicle and electric fan.
- Activates by grounding electric fans at preset temperature.
- 180'F turn-on temperature, 165'F turn-off temperature.
- 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
- Probe typically threads into radiator, water outlet or manifold.
- 1X Aluminum Racing Radiator
- Just as pictures show
- 1960-1965 Chevy Biscayne All Engines
- 1959-1963 Chevy Impala All Engines
- 1963-1965 Chevy Belair All Engines
- 1964-1965 Chevy Chevelle All Engines
- 1959-1962 Chevy Kingswood All Engines
- 1959-1960 Chevy El Camino /Cabellero All Engines
- 1964-1965 Chevy El Camino /Cabellero All Engines
- 1959-1962 Chevy Caprice All Engines
- For the year and models, please check the compatibility.
