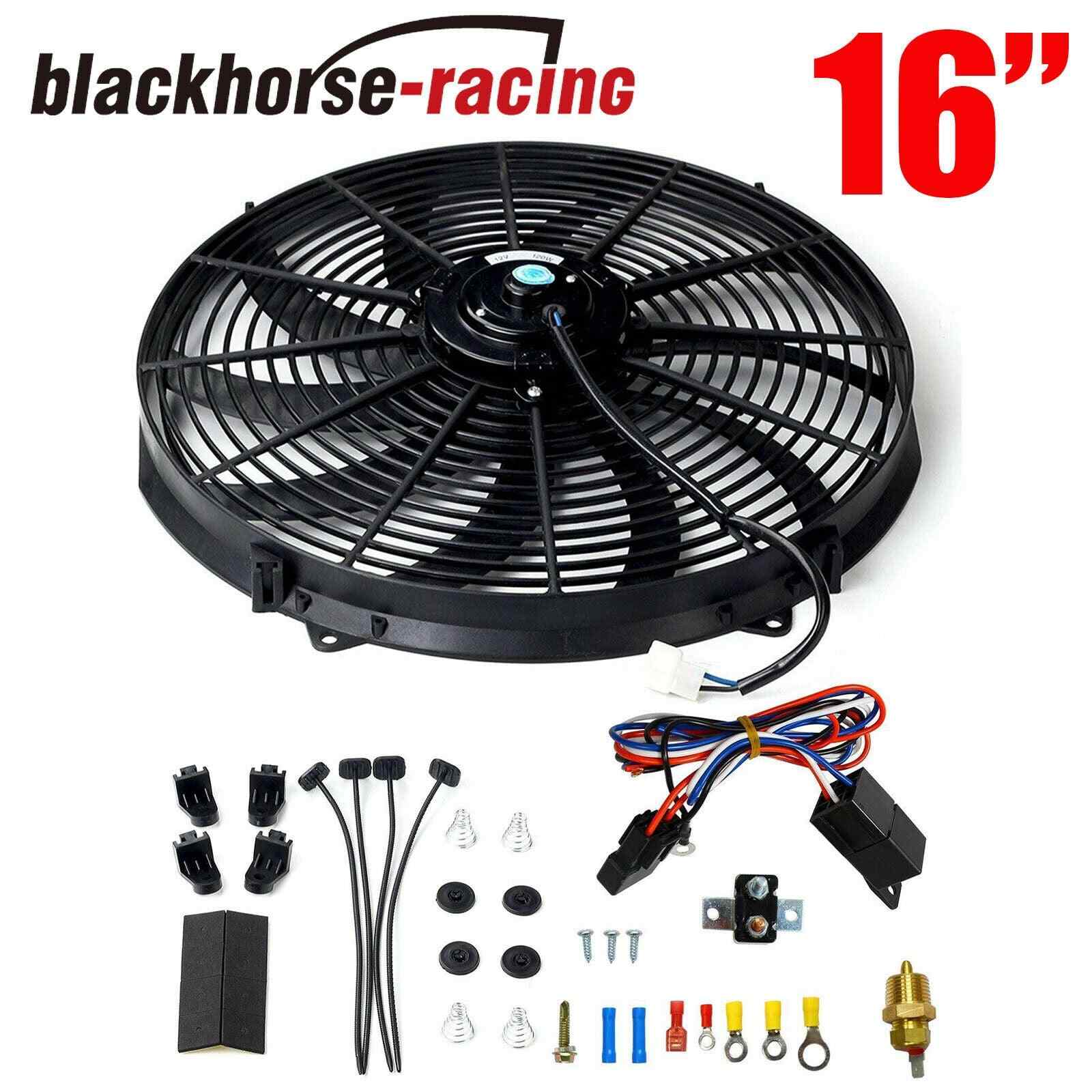

16''Black Electric Radiator Fan High 3000+ CFM Thermostat wiring Switch Relay Kit
- 100% Brand new radiator cooling fan blade for Universal use
- Color: Black
- Easy direct installation, require NO modification
- OE Fitment or Replacement, Push or Pull Type
- Professional installation is highly recommended
- No instruction included.
- 16 inch reversible 12 volt electric cooling fan.
- Universal fit for hot rods, classic engines and modern vehicles.
- Powerful 120 watt motor will keep your engine cool.
- Configured as an air puller out of the box.
- Blade and wiring can be reversed to make the fan an air pusher.
- For radiators, oil coolers, transmission coolers, condensers and more.

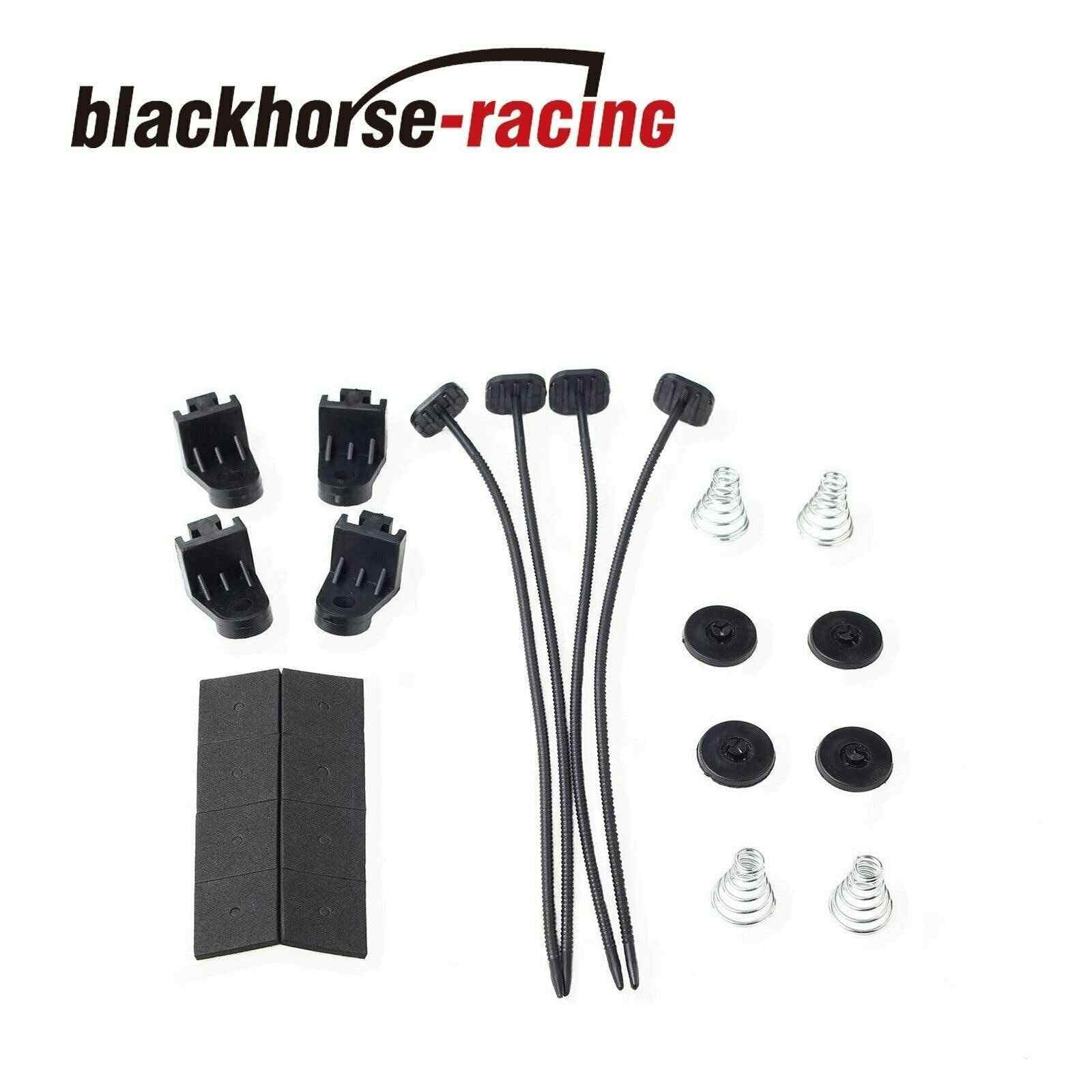

- Includes mounting feet attachments and tie strap kit.
- Blade Size： 15 Inch
- Blade Type：Curved
- Motor Size：120 Watts
- CFM Rating： 3000
- RPM Rating： 2050
- Amp Draw：15 Amps
- Material：Plastic Shroud/Steel Motor
- Universal fit for any automotive application.
- Activates by grounding electric fans at preset temperature.
- 180'F turn-on temperature, 165'F turn-off temperature.

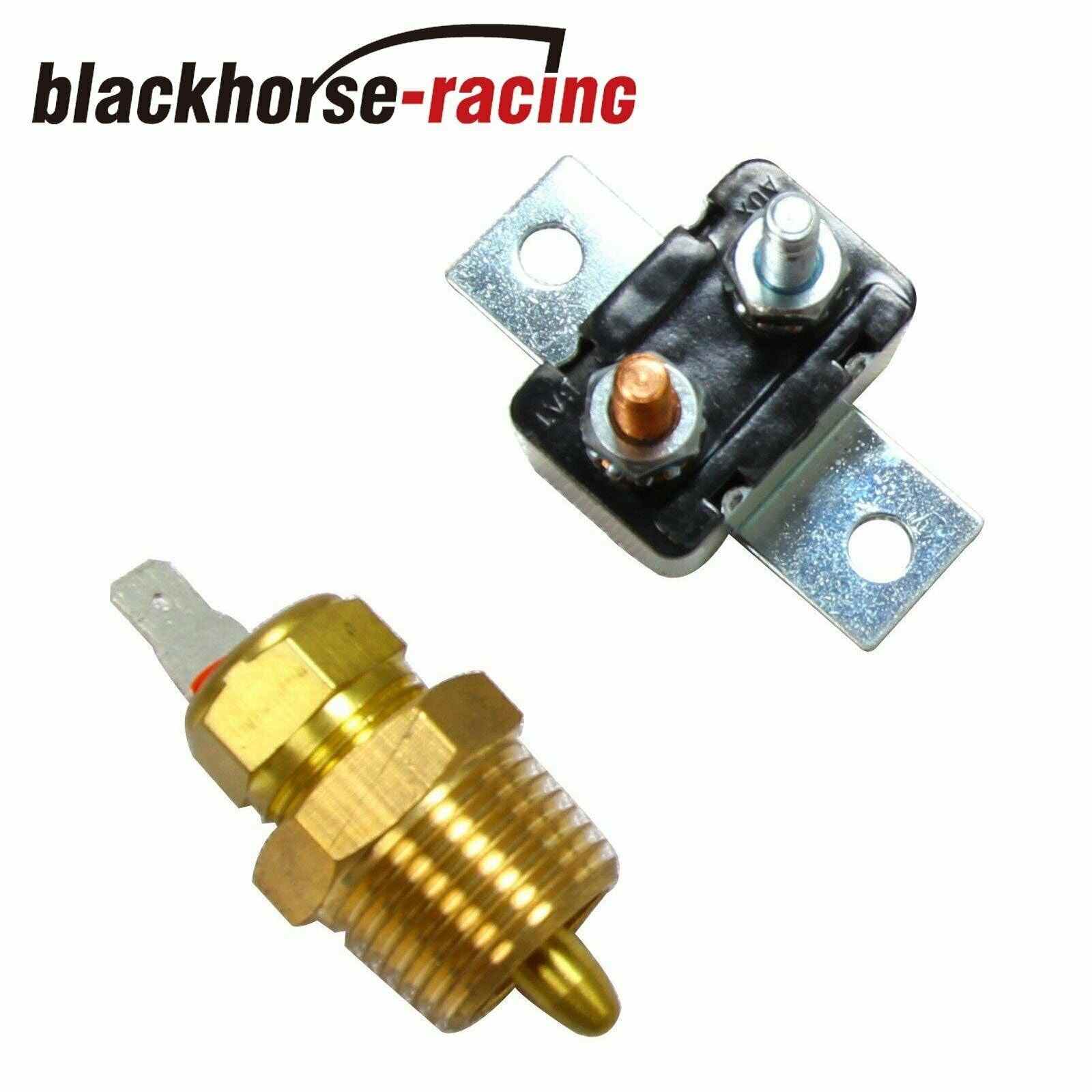

- 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
- Probe typically threads into radiator, water outlet hose or manifold.

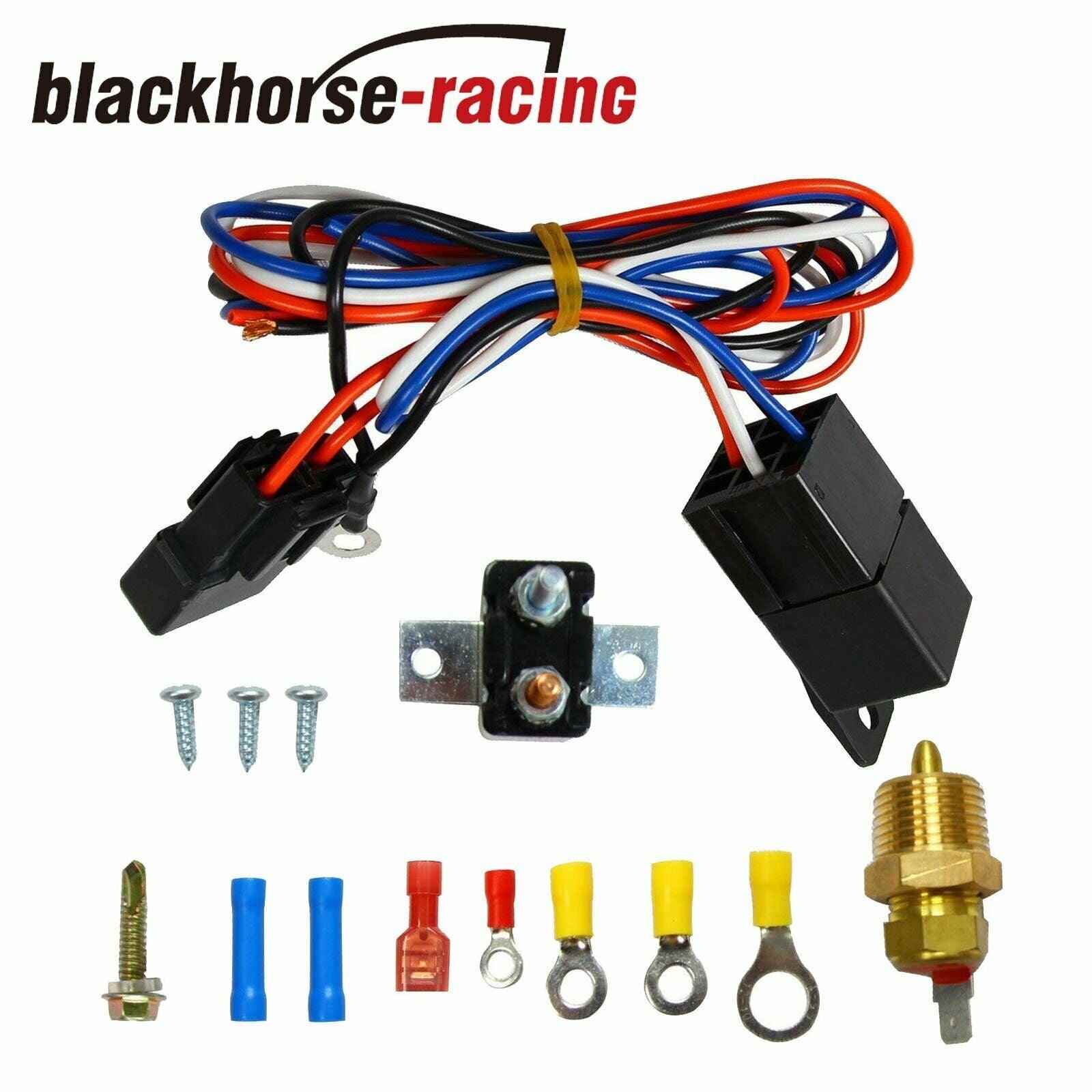

- (1) - 3/8" NPT Thread-in Thermostat
- (1) - 1/2" NPT Adapter
- (1) - Wiring Harness w/ Mount
- (1) - 40 Amp Relay
- (1) - 30 Amp Circuit Breaker
- (3) - Small Ring Terminals
- (1) - Large Ring Terminal
- (1) - Harness Mounting Screw
- (2) - Butt Connectors
- (2) - Sheet Metal Screws
- (1) - Female Connector
- Just as pictures show
