14" INCH ELECTRIC RADIATOR ENGINE FAN ADJUSTABLE FIN PROBE THERMOSTAT SWITCH KIT

Description:

• American Volt high performance 14 inch reversible 12V electric cooling fan.
• Custom upgraded 90 watt motor produces more CFM air flow volume.
• Fan motors are sealed to be water and dust resistant, increasing longevity.
• Fan is configured by default as an air puller out of the box.
• Blade and wiring can be reversed to make the fan an air pusher.
• Durably built to be shock resistant for on-road and off-road vehicle applications.
• Professional installation is highly recommended
• Instructions Included

• 100% Brand new and never been used.
• Fan Size: 14 Inch
• Blade Type: Curved
• Motor Size: 90 Watts
• CFM Rating: 900
• RPM Rating: 2000±10%
• Amp Draw:  ≤9.5 Amps
• Material: Plastic Shroud/Steel Motor
• Dimensions: 15" x 14" x 2.5" thickness at center x 1.5" thickness at edge

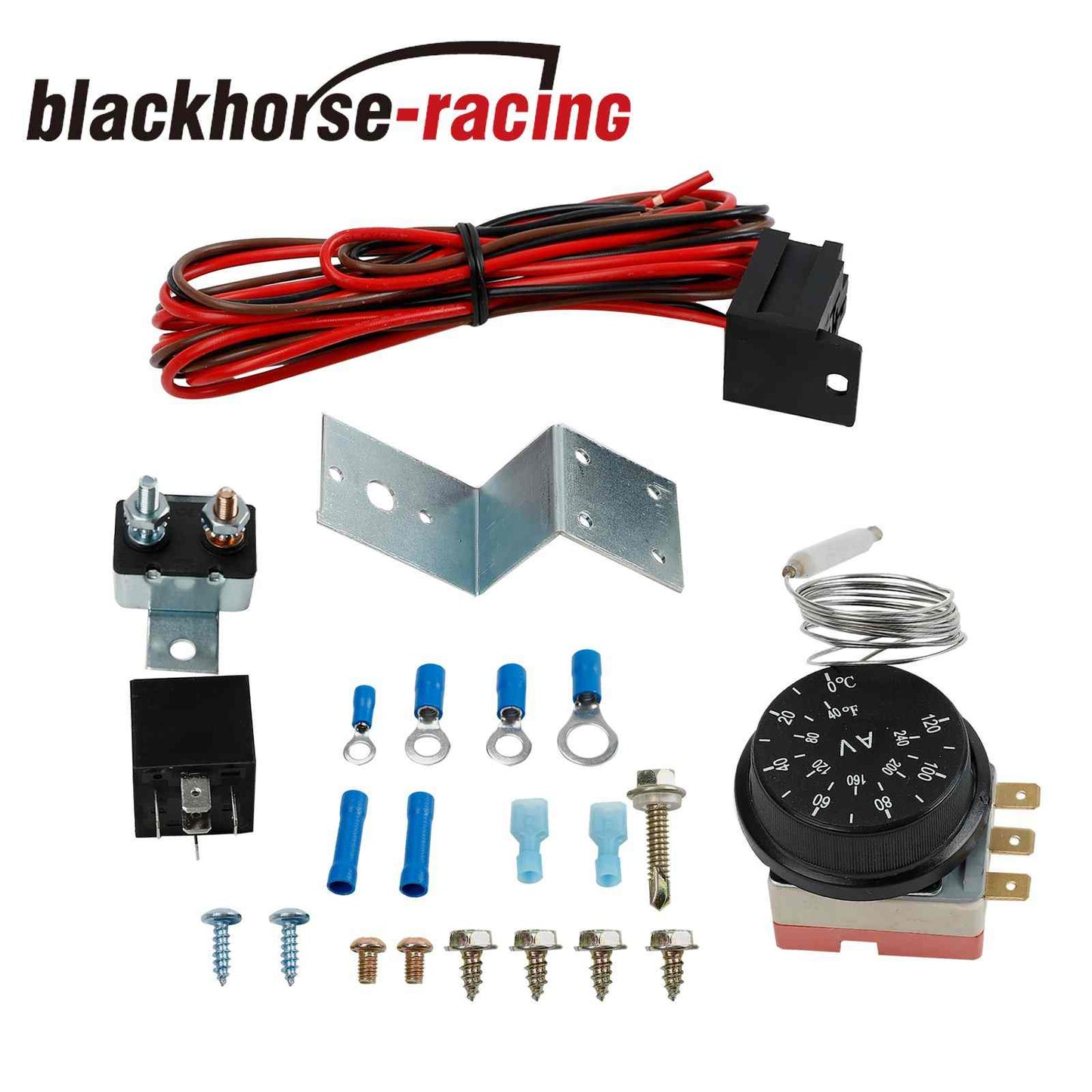

• Thermostat Kit:
• Adjustable fan thermostat with complete installation wiring kit.
• Measures liquid or contact temperature and turns on electric fan.
• Flexible temperature turn dial control range of 32-250'F (0-120'C).
• Thermostat can be wired to turn fan on or off when set temperature is hit.
• Turn-off temperature is always 15 degrees less than turn-on.
• Thermostat dial has both Celsius and Fahrenheit temperature markings.
• Probe can be pushed into radiator, condenser, oil cooler fins or inlet tube.
• Capillary thermostat tube wire is 30 inches in length.

Fitment:

• Universal design for all radiators, oil coolers, transmission coolers, condensers etc.

Package includes:

• 1X 14" Electric Radiator Engine Fan
• 1X Adjustable Thermostat
• 1X Turn Dial w/ Temp Markers
• 1X Mounting Bracket

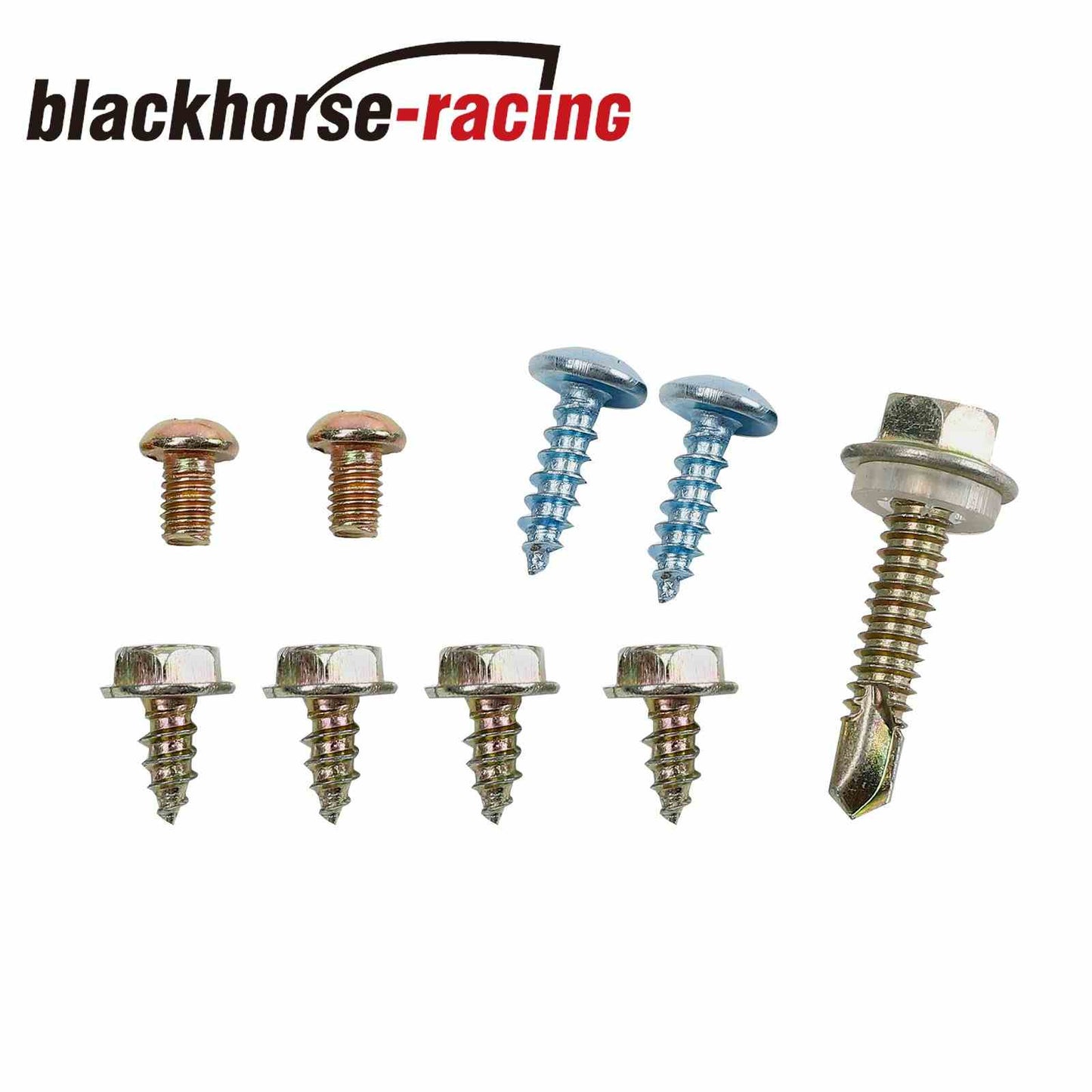

• 5X Mounting Screws

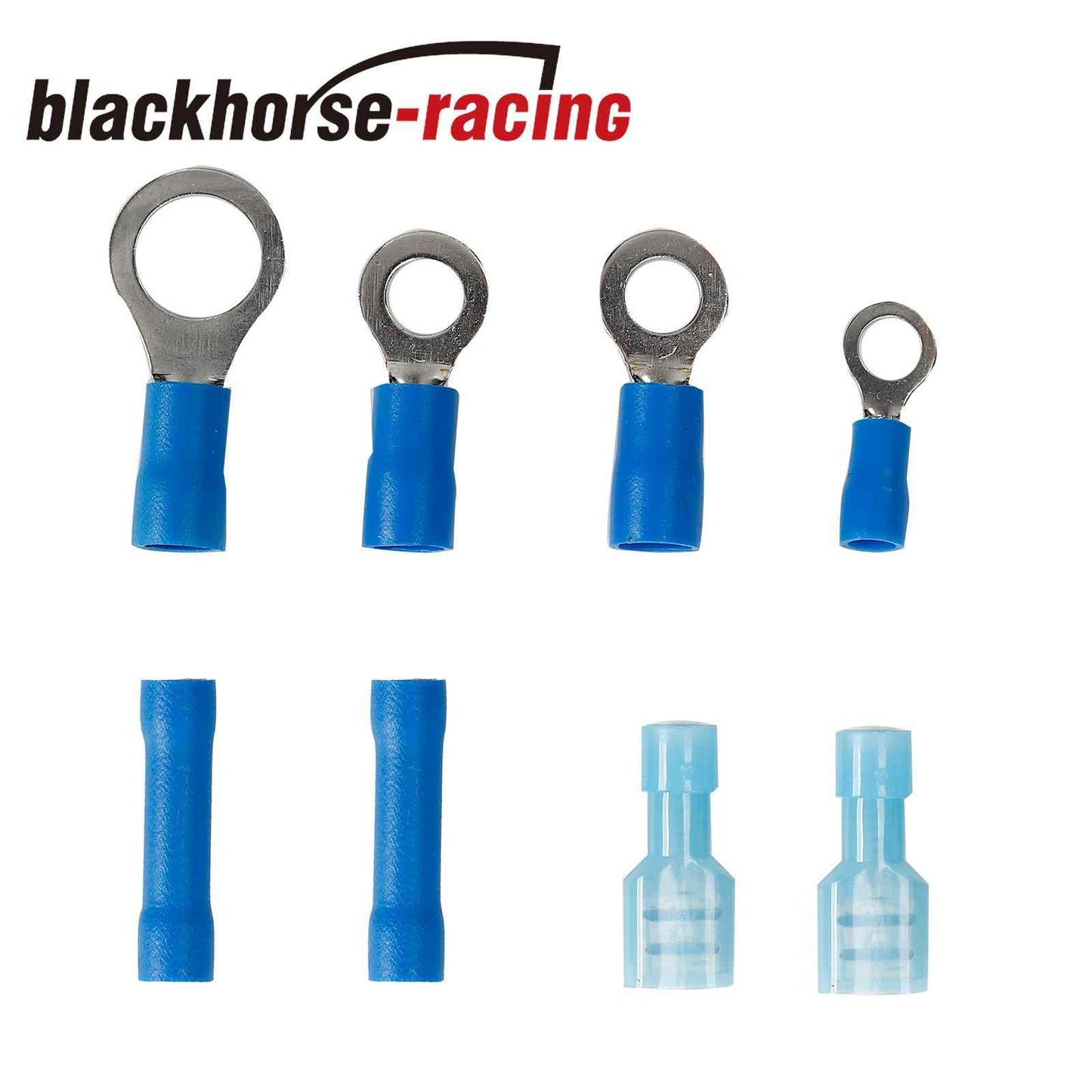

• 2X Butt Connectors

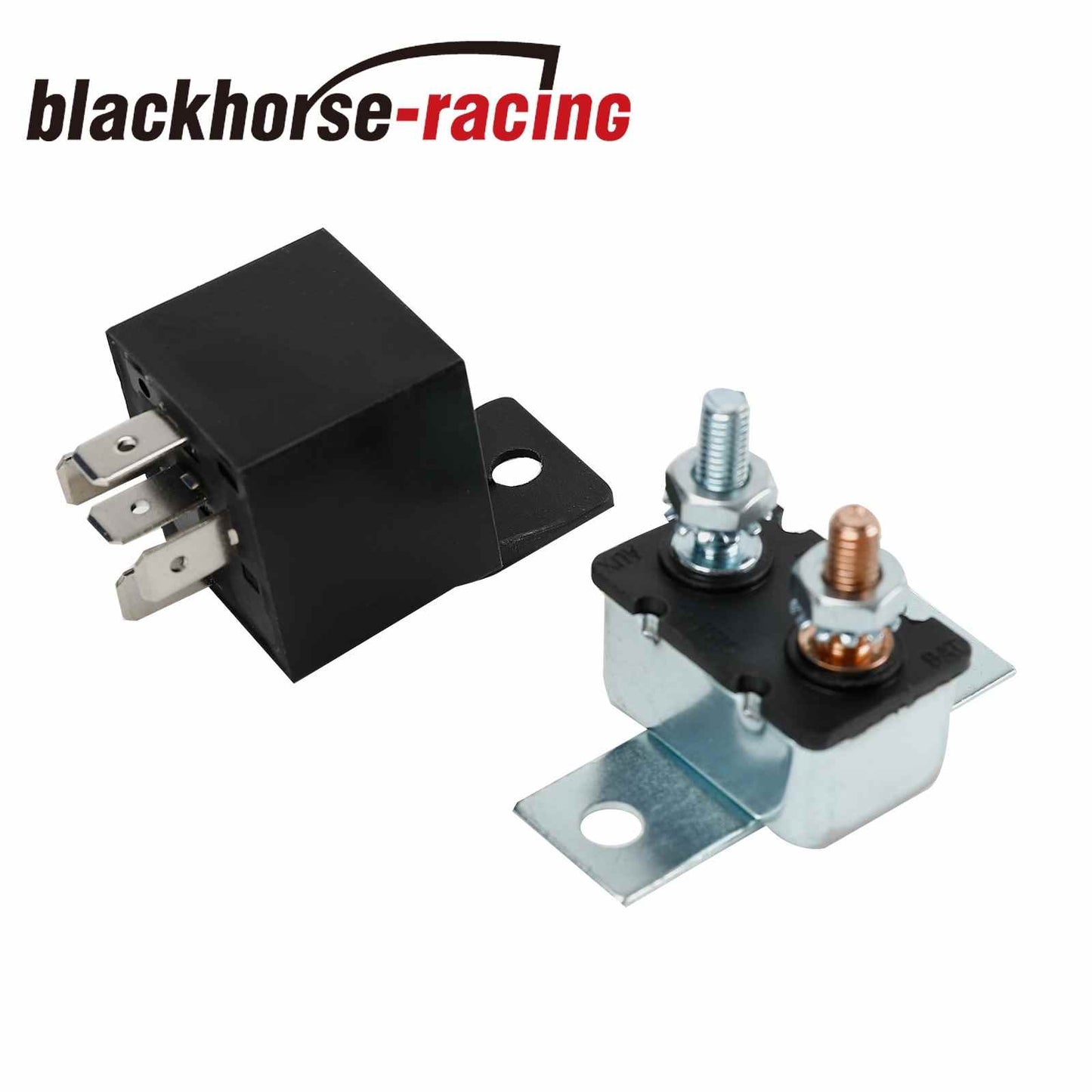

• 1X 30 Amp Circuit Breaker
• 2X Female Connectors
• 1X 40 Amp Relay
• 1X Large Ring Terminal
• 3X Small Ring Terminals

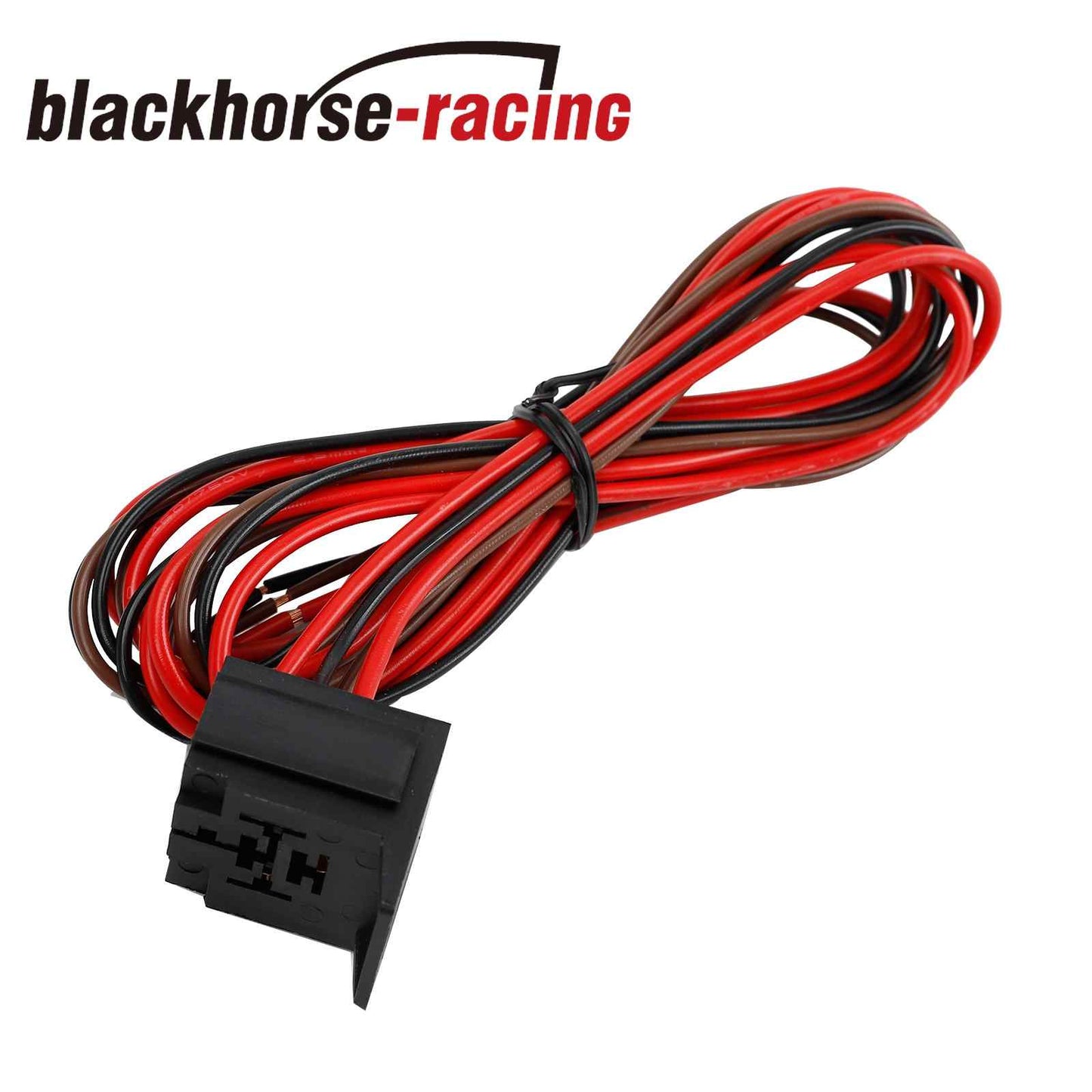

• 1X Wire Harness
• Just as pictures show
